Specifications

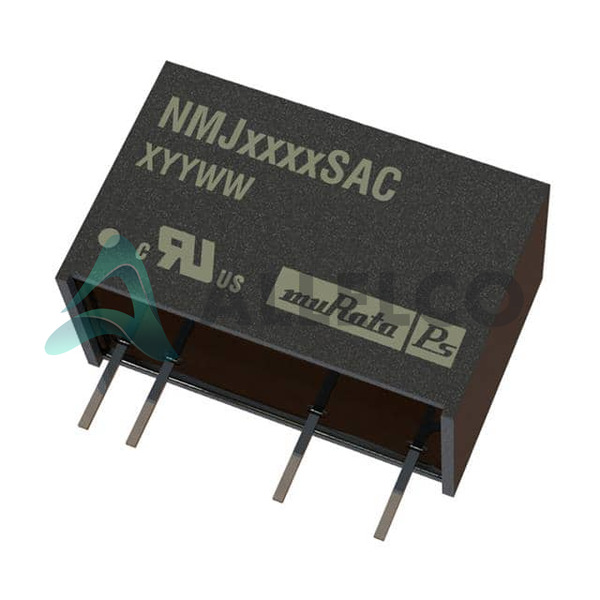

NMJ0303SAC Tech Specifications
Murata Power Solutions Inc. - NMJ0303SAC technical specifications, attributes, parameters and parts with similar specifications to Murata Power Solutions Inc. - NMJ0303SAC
| Product Attribute |
Attribute Value
| |
| Manufacturer |
Murata Power Solutions |
|
| Voltage - Output 3 |
- |
|
| Voltage - Output 2 |
- |
|
| Voltage - Output 1 |
3.3V |
|
| Voltage - Isolation |
5.2 kV |
|
| Voltage - Input (Min) |
3V |
|
| Voltage - Input (Max) |
3.6V |
|
| Type |
Isolated Module |
|
| Size / Dimension |
0.77" L x 0.39" W x 0.49" H (19.6mm x 9.9mm x 12.4mm) |
|
| Series |
NMJ (1W) |
|
| Power (Watts) |
1 W |
|
| Product Attribute |
Attribute Value
| |
| Package / Case |
7-SIP Module, 4 Leads |
|
| Package |
Tube |
|
| Operating Temperature |
-40°C ~ 60°C |
|
| Number of Outputs |
1 |
|
| Mounting Type |
Through Hole |
|
| Features |
- |
|
| Efficiency |
66% |
|
| Current - Output (Max) |
303mA |
|
| Base Product Number |
NMJ03 |
|
| Applications |
ITE (Commercial) |
|
