Home Products Switches Rocker Switches~~GW22LHP~~

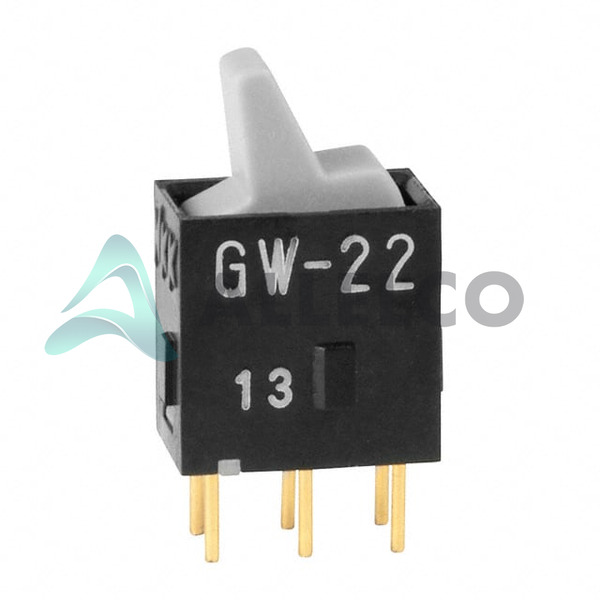

Image may be representation.
See specifications for product details.

~~Favorite~~

EXPRESS OPTION

Payment method

GW22LHP - NKK Switches

Name: NKK Switches GW22LHP
Brand: NKK Switches
SKU: GW22LHP
Price: 1.084 USD
Availability: InStock
Rating: 5 (7 reviews)

Manufacturer Part Number: GW22LHP

Manufacturer: NKK Switches

Allelco Part Number: 98D-GW22LHP

Warranty: 1 Year Allelco Warranty - Find out more

Parts Description: SWITCH ROCKER DPDT 0.4VA 28V

Package: Tray

Data sheet: 1.GW22LHP.pdf ...

Datasheets
Cylindrical Battery Holders.pdf

PCN Assembly/Origin
2.73KHz.pdf

PCN Design/Specification
Cylindrical Battery Holders.pdf

HTML Datasheet
Cylindrical Battery Holders.pdf

Environmental Information
NKK Switches PFOS & PFOA Free Cert.pdf RoHS Cert - Switches & Pushbuttons.pdf

RoHs Status: ROHS3 Compliant

~~Compare~~

Our certification

In stock: 33587

Unit Price: $2.81
Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity	Unit Price	Ext. Price
1+	$2.81	$2.81
200+	$1.122	$224.40
500+	$1.084	$542.00

The above prices does not include taxes and freight rates, which will be calculated on the order pages.

EXPRESS OPTION

Payment method

Our certification

Specifications

GW22LHP Tech Specifications
NKK Switches - GW22LHP technical specifications, attributes, parameters and parts with similar specifications to NKK Switches - GW22LHP

Product Attribute	Attribute Value
Manufacturer	NKK Switches
Voltage Rating - DC	28 V
Voltage Rating - AC	28 V
Termination Style	PC Pin
Switch Function	On-On
Series	GW
Panel Cutout Dimensions	-
Package	Tray
Operating Temperature	-30°C ~ 85°C
Mounting Type	Through Hole
Mechanical Life	50,000 Cycles

Product Attribute	Attribute Value
Ingress Protection	-
Illumination Voltage (Nominal)	-
Illumination Type, Color	-
Features	Sealed - Flux Protection
Electrical Life	50,000 Cycles
Current Rating (Amps)	0.4VA (AC/DC)
Color - Actuator/Cap	Gray
Circuit	DPDT
Actuator Type	Paddle
Actuator Marking	No Marking

Environmental & Export Classifications

ATTRIBUTE	DESCRIPTION
RoHs Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.50.9065

Parts with Similar Specifications

The three parts on the right have similar specifications to NKK Switches GW22LHP

Product Attribute
Part Number	GW22LCH	GW22LHV	GW22LCP	GW22LBH
Manufacturer	NKK Switches	NKK Switches	NKK Switches	NKK Switches
Actuator Marking	-	-	-	-
Termination Style	-	-	-	-
Color - Actuator/Cap	-	-	-	-
Ingress Protection	-	-	-	-
Voltage Rating - AC	-	-	-	-
Series	-	-	-	-
Voltage Rating - DC	-	-	-	-
Package	-	Tape & Reel (TR)	Tube	Tape & Reel (TR)
Illumination Voltage (Nominal)	-	-	-	-
Circuit	-	-	-	-
Switch Function	-	-	-	-
Current Rating (Amps)	-	-	-	-
Features	-	-	-	Simultaneous Sampling
Mounting Type	-	Surface Mount	Through Hole	Surface Mount
Mechanical Life	-	-	-	-
Operating Temperature	-	-40°C ~ 85°C	0°C ~ 70°C	-40°C ~ 85°C
Electrical Life	-	-	-	-
Panel Cutout Dimensions	-	-	-	-
Illumination Type, Color	-	-	-	-
Actuator Type	-	-	-	-

GW22LHP Datasheet PDF

Download GW22LHP pdf datasheets and NKK Switches documentation for GW22LHP - NKK Switches.

Datasheets: Cylindrical Battery Holders.pdf
PCN Assembly/Origin: 2.73KHz.pdf
PCN Design/Specification: Cylindrical Battery Holders.pdf
HTML Datasheet: Cylindrical Battery Holders.pdf
Environmental Information: NKK Switches PFOS & PFOA Free Cert.pdf RoHS Cert - Switches & Pushbuttons.pdf
