HomeProductsSwitchesKeylock SwitchesSK24EG30

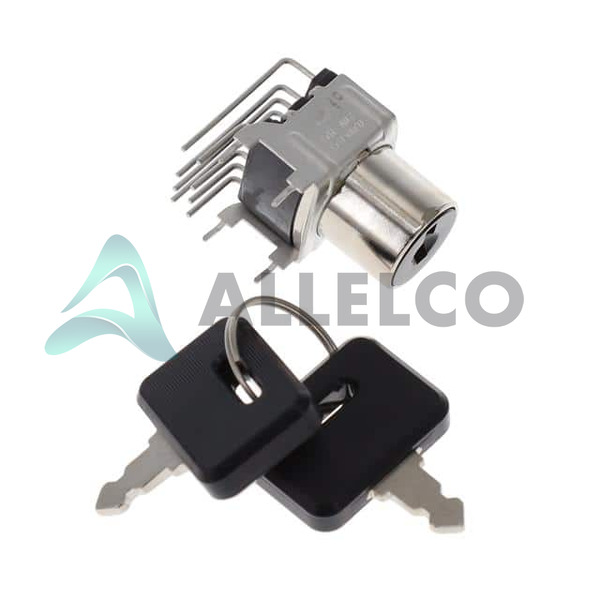

SK24EG30 Image
SK24EG30 Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

SK24EG30 - NKK Switches

Manufacturer Part Number
SK24EG30
Manufacturer
NKK Switches
Allelco Part Number
98D-SK24EG30
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
SWITCH KEYLK 3POS DP3T 0.4VA 28V
Package
Box
Data sheet
1.SK24EG30.pdf ...
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 36324
  • Unit Price: $12.538
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $12.538 $12.54
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

SK24EG30 Tech Specifications
NKK Switches - SK24EG30 technical specifications, attributes, parameters and parts with similar specifications to NKK Switches - SK24EG30

Product Attribute Attribute Value
Manufacturer NKK Switches
Voltage Rating - DC 28 V
Voltage Rating - AC 28 V
Termination Style PC Pin
Switch Function On-On-On
Series SK
Panel Cutout Dimensions -
Package Box
Operating Temperature -25°C ~ 70°C
Number of Positions 3
Mounting Type Through Hole, Right Angle
Mechanical Life 30,000 Cycles
Product Attribute Attribute Value
Key Removable Positions 2 only
Features Process Sealed
Electrical Life 10,000 Cycles
Depth Behind Flange -
Current Rating (Amps) 0.4VA (AC/DC)
Contact Timing Non-Shorting (BBM)
Contact Material Beryllium Copper
Contact Finish Gold
Circuit DP3T
Base Product Number SK24EG
Angle of Throw 45°
Actuator Type Flat Key

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9020

Parts with Similar Specifications

The three parts on the right have similar specifications to NKK Switches SK24EG30

Product Attribute SK24EG30 SK24DG13 SK24EG13 SK24DG30
Part Number SK24EG30 SK24DG13 SK24EG13 SK24DG30
Manufacturer NKK Switches NKK Switches NKK Switches NKK Switches
Base Product Number SK24EG SK24DG SK24EG SK24DG
Panel Cutout Dimensions - - - -
Number of Positions 3 3 3 3
Key Removable Positions 2 only All 2 only All
Depth Behind Flange - - - -
Package Box Bulk Bulk Box
Contact Material Beryllium Copper Beryllium Copper Beryllium Copper Beryllium Copper
Mounting Type Through Hole, Right Angle Through Hole Through Hole Through Hole, Right Angle
Circuit DP3T DP3T DP3T DP3T
Termination Style PC Pin PC Pin PC Pin PC Pin
Actuator Type Flat Key Flat Key Flat Key Flat Key
Voltage Rating - DC 28 V 28 V 28 V 28 V
Switch Function On-On-On On-On-On On-On-On On-On-On
Voltage Rating - AC 28 V 28 V 28 V 28 V
Features Process Sealed Process Sealed Process Sealed Process Sealed
Electrical Life 10,000 Cycles 10,000 Cycles 10,000 Cycles 10,000 Cycles
Angle of Throw 45° 45° 45° 45°
Operating Temperature -25°C ~ 70°C -25°C ~ 70°C -25°C ~ 70°C -25°C ~ 70°C
Contact Timing Non-Shorting (BBM) Non-Shorting (BBM) Non-Shorting (BBM) Non-Shorting (BBM)
Contact Finish Gold Gold Gold Gold
Mechanical Life 30,000 Cycles 30,000 Cycles 30,000 Cycles 30,000 Cycles
Current Rating (Amps) 0.4VA (AC/DC) 0.4VA (AC/DC) 0.4VA (AC/DC) 0.4VA (AC/DC)
Series SK SK SK SK

SK24EG30 Datasheet PDF

Download SK24EG30 pdf datasheets and NKK Switches documentation for SK24EG30 - NKK Switches.

Datasheets
Cylindrical Battery Holders.pdf
PCN Design/Specification
SK Series Boot Color 08/Aug/2014.pdf SK Series Product Improvement 12/May/2017.pdf
HTML Datasheet
SK Series Process Sealed Keylocks.pdf
Environmental Information
NKK Switches PFOS & PFOA Free Cert.pdf RoHS Cert - Switches & Pushbuttons.pdf
