Specifications

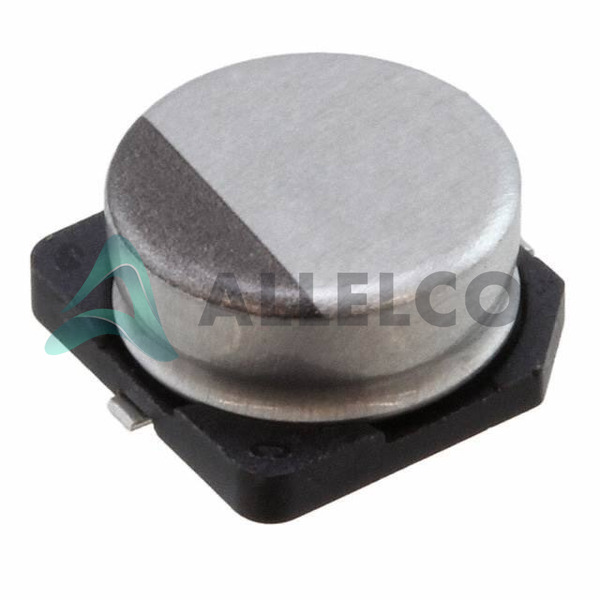

UZD1E100MCL1GB Tech Specifications
Nichicon - UZD1E100MCL1GB technical specifications, attributes, parameters and parts with similar specifications to Nichicon - UZD1E100MCL1GB
| Product Attribute |
Attribute Value
| |
| Manufacturer |
Nichicon |
|
| Voltage - Rated |
25 V |
|
| Tolerance |
±20% |
|
| Surface Mount Land Size |
0.260' L x 0.260' W (6.60mm x 6.60mm) |
|
| Size / Dimension |
0.248' Dia (6.30mm) |
|
| Series |
UZD |
|
| Ripple Current @ Low Frequency |
27 mA @ 120 Hz |
|
| Ripple Current @ High Frequency |
40.5 mA @ 10 kHz |
|
| Ratings |
- |
|
| Polarization |
- |
|
| Product Attribute |
Attribute Value
| |
| Package / Case |
Radial, Can - SMD |
|
| Package |
Tape & Reel (TR) |
|
| Operating Temperature |
-40°C ~ 85°C |
|
| Mounting Type |
Surface Mount |
|
| Lifetime @ Temp. |
1000 Hrs @ 85°C |
|
| Lead Spacing |
- |
|
| Height - Seated (Max) |
0.126' (3.20mm) |
|
| ESR (Equivalent Series Resistance) |
- |
|
| Capacitance |
10 µF |
|
| Applications |
General Purpose |
|
