HomeProductsSwitchesLimit SwitchesD4F-220-1D

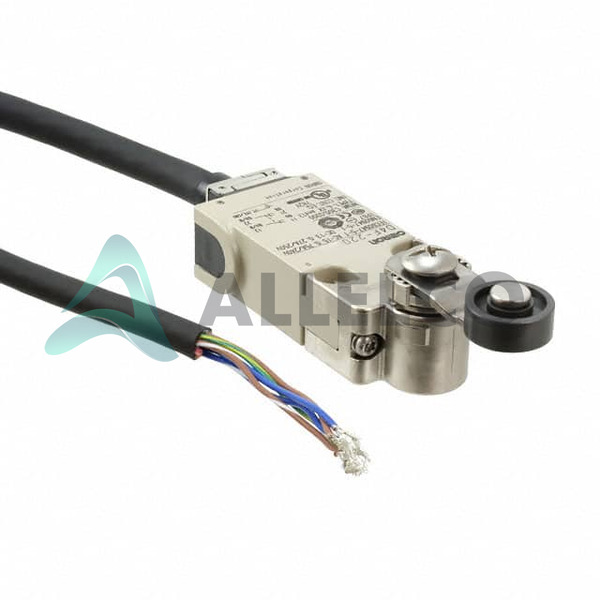

D4F-220-1D Image
D4F-220-1D Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

D4F-220-1D - Omron Automation and Safety

Manufacturer Part Number
D4F-220-1D
Manufacturer
Omron Automation
Allelco Part Number
98D-D4F-220-1D
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
SWITCH SNAP ACT DPST-NC 15A 120V
Package
Bulk
Data sheet
1.D4F-220-1D.pdf ...

Datasheets

D4F Series.pdf
Compare
Our certification
In stock: 36797
  • Unit Price: $253.43
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $253.43 $253.43
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

D4F-220-1D Tech Specifications
Omron Automation and Safety - D4F-220-1D technical specifications, attributes, parameters and parts with similar specifications to Omron Automation and Safety - D4F-220-1D

Product Attribute Attribute Value
Manufacturer Omron Automation
Voltage Rating - DC 125 V
Voltage Rating - AC 120 V
Termination Style Cable Leads
Switch Function On-Mom
Series D4F
Release Force 51gf
Pretravel 12°
Package Bulk
Overtravel 40°
Operating Temperature -30°C ~ 70°C
Operating Position -
Product Attribute Attribute Value
Operating Force 510gf
Mounting Type Chassis Mount
Mechanical Life 10,000,000 Cycles
Ingress Protection IP67 - Dust Tight, Waterproof
Features Cable Length 1m
Electrical Life 150,000 Cycles
Differential Travel -
Current Rating (Amps) 15A (AC), 550mA (DC)
Circuit DPST-NC
Base Product Number D4F-220
Actuator Type Side Rotary, Roller

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status Not applicable
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9055

Parts with Similar Specifications

The three parts on the right have similar specifications to Omron Automation and Safety D4F-220-1D

Product Attribute D4F-220-5D D4F-220-1R D4F-220-3D D4F-202-1D
Part Number D4F-220-5D D4F-220-1R D4F-220-3D D4F-202-1D
Manufacturer Omron Automation and Safety Omron Automation and Safety Omron Automation and Safety Omron Automation and Safety
Circuit - - - -
Release Force - - - -
Pretravel - - - -
Mounting Type - Surface Mount Through Hole Surface Mount
Base Product Number - DAC34H84 MAX500 ADS62P42
Overtravel - - - -
Operating Position - - - -
Operating Temperature - -40°C ~ 85°C 0°C ~ 70°C -40°C ~ 85°C
Operating Force - - - -
Differential Travel - - - -
Ingress Protection - - - -
Current Rating (Amps) - - - -
Voltage Rating - DC - - - -
Package - Tape & Reel (TR) Tube Tape & Reel (TR)
Series - - - -
Termination Style - - - -
Actuator Type - - - -
Mechanical Life - - - -
Features - - - Simultaneous Sampling
Voltage Rating - AC - - - -
Electrical Life - - - -
Switch Function - - - -
