HomeProductsSwitchesDIP SwitchesA6E-6101-N

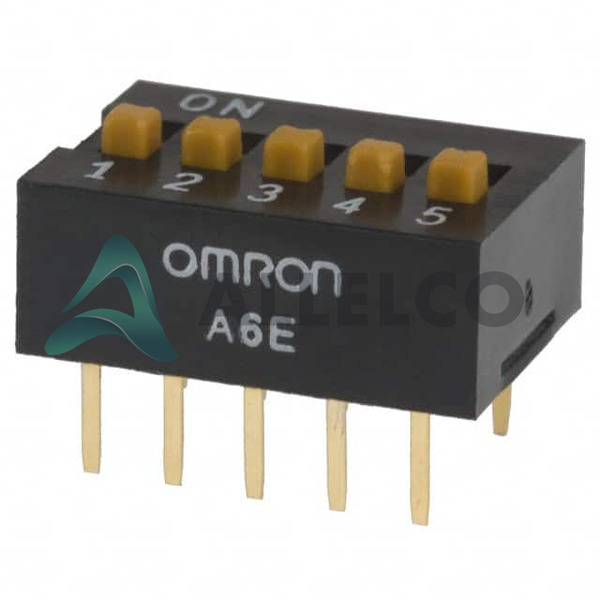

A6E-6101-N Image
A6E-6101-N Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

A6E-6101-N - Omron Electronics Inc-EMC Div

Manufacturer Part Number
A6E-6101-N
Manufacturer
Omron Electronic Components
Allelco Part Number
98D-A6E-6101-N
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
SWITCH SLIDE DIP SPST 25MA 24V
Package
Tube
Data sheet
1.A6E-6101-N.pdf ...

Other Related Documents

Cylindrical Battery Holders.pdf

PCN Design/Specification

Cylindrical Battery Holders.pdf
RoHs Status
RoHS Compliant
Compare
Our certification
In stock: 39633
  • Unit Price: $0.935
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $0.935 $0.94
189+ $0.374 $70.69
513+ $0.362 $185.71
999+ $0.355 $354.65
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

A6E-6101-N Tech Specifications
Omron Electronics Inc-EMC Div - A6E-6101-N technical specifications, attributes, parameters and parts with similar specifications to Omron Electronics Inc-EMC Div - A6E-6101-N

Product Attribute Attribute Value
Manufacturer Omron Electronic Components
Washable No
Voltage Rating 24VDC
Termination Style PC Pin
Series A6E-N
Pitch 0.100' (2.54mm), Full
Package Tube
Operating Temperature -20°C ~ 70°C
Number of Positions 6
Mounting Type Through Hole
Mechanical Life 1,000 Cycles
Length 0.654' (16.61mm)
Product Attribute Attribute Value
Height Above Board 0.230' (5.85mm)
Features -
Electrical Life 1,000 Cycles
Current Rating (Amps) 25mA
Contact Material -
Contact Finish Gold
Circuit SPST
Body Material -
Base Product Number A6E
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status RoHS Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9065

Parts with Similar Specifications

The three parts on the right have similar specifications to Omron Electronics Inc-EMC Div A6E-6101-N

Product Attribute A6E-6104-N A6E-8101-N A6E-7101-N A6E-5101-N
Part Number A6E-6104-N A6E-8101-N A6E-7101-N A6E-5101-N
Manufacturer Omron Electronics Inc-EMC Div Omron Electronics Inc-EMC Div Omron Electronics Inc-EMC Div Omron Electronics Inc-EMC Div
Voltage Rating - - - -
Package - Tape & Reel (TR) Tube Tape & Reel (TR)
Length - - - -
Contact Finish - - - -
Series - - - -
Circuit - - - -
Termination Style - - - -
Actuator Type - - - -
Electrical Life - - - -
Operating Temperature - -40°C ~ 85°C 0°C ~ 70°C -40°C ~ 85°C
Washable - - - -
Pitch - - - -
Number of Positions - - - -
Current Rating (Amps) - - - -
Base Product Number - DAC34H84 MAX500 ADS62P42
Contact Material - - - -
Actuator Level - - - -
Body Material - - - -
Mechanical Life - - - -
Features - - - Simultaneous Sampling
Height Above Board - - - -
Mounting Type - Surface Mount Through Hole Surface Mount
