HomeProductsSwitchesDIP SwitchesA6SR-8101-R100

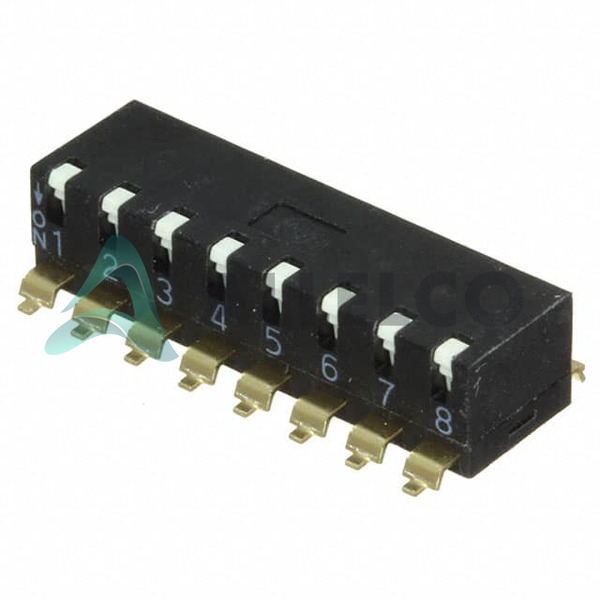

A6SR-8101-R100 Image
A6SR-8101-R100 Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

A6SR-8101-R100 - Omron Electronics Inc-EMC Div

Manufacturer Part Number
A6SR-8101-R100
Manufacturer
Omron Electronic Components
Allelco Part Number
98D-A6SR-8101-R100
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
SWITCH PIANO DIP SPST 25MA 24V
Package
Tape & Reel (TR)
Data sheet
1.A6SR-8101-R100.pdf ...

Datasheets

A6SR.pdf

Other Related Documents

How to Read Date Codes.pdf
RoHs Status
RoHS Compliant
Compare
Our certification
In stock: 49832
  • Unit Price: $0.453
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $0.453 $0.45
200+ $0.181 $36.20
500+ $0.175 $87.50
1000+ $0.172 $172.00
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

A6SR-8101-R100 Tech Specifications
Omron Electronics Inc-EMC Div - A6SR-8101-R100 technical specifications, attributes, parameters and parts with similar specifications to Omron Electronics Inc-EMC Div - A6SR-8101-R100

Product Attribute Attribute Value
Manufacturer Omron Electronic Components
Washable No
Voltage Rating 24VDC
Termination Style Gull Wing
Series A6SR
Pitch 0.100" (2.54mm), Full
Package Tape & Reel (TR)
Operating Temperature -20°C ~ 70°C
Number of Positions 8
Mounting Type Surface Mount, Right Angle
Mechanical Life -
Length 0.796" (20.22mm)
Product Attribute Attribute Value
Height Above Board 0.197" (5.00mm)
Features -
Electrical Life 1,000 Cycles
Current Rating (Amps) 25mA
Contact Material -
Contact Finish Gold
Circuit SPST
Body Material -
Base Product Number A6SR
Actuator Type Piano
Actuator Level Flush, Recessed

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status RoHS Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9065

Parts with Similar Specifications

The three parts on the right have similar specifications to Omron Electronics Inc-EMC Div A6SR-8101-R100

Product Attribute A6SR-8101-P A6SR-6101-P A6SR-8101 A6SR-8104-P
Part Number A6SR-8101-P A6SR-6101-P A6SR-8101 A6SR-8104-P
Manufacturer Omron Omron Electronics Inc-EMC Div Omron Electronics Inc-EMC Div Omron Electronics Inc-EMC Div
Current Rating (Amps) - - - -
Actuator Type - - - -
Number of Positions - - - -
Length - - - -
Termination Style - - - -
Operating Temperature - -40°C ~ 85°C 0°C ~ 70°C -40°C ~ 85°C
Base Product Number - DAC34H84 MAX500 ADS62P42
Voltage Rating - - - -
Circuit - - - -
Series - - - -
Body Material - - - -
Actuator Level - - - -
Mechanical Life - - - -
Features - - - Simultaneous Sampling
Pitch - - - -
Electrical Life - - - -
Package - Tape & Reel (TR) Tube Tape & Reel (TR)
Washable - - - -
Contact Finish - - - -
Height Above Board - - - -
Contact Material - - - -
Mounting Type - Surface Mount Through Hole Surface Mount

A6SR-8101-R100 Datasheet PDF

Download A6SR-8101-R100 pdf datasheets and Omron Electronics Inc-EMC Div documentation for A6SR-8101-R100 - Omron Electronics Inc-EMC Div.

Datasheets
A6SR.pdf
Other Related Documents
How to Read Date Codes.pdf
