HomeProductsSwitchesLimit SwitchesD2SW-3L3TS

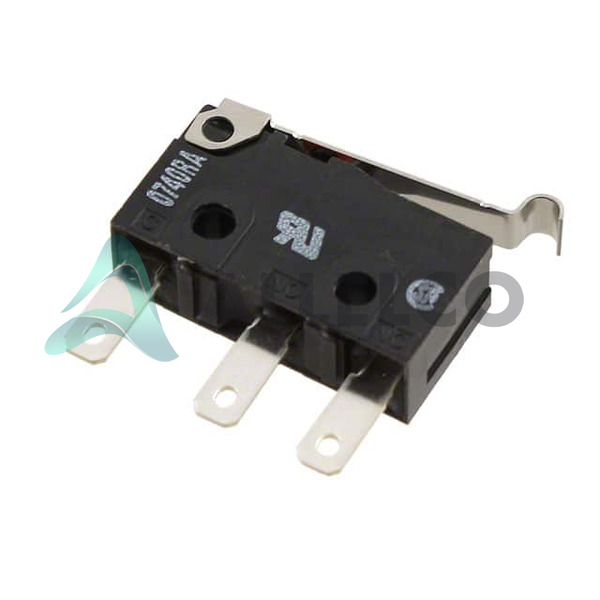

D2SW-3L3TS Image
D2SW-3L3TS Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

D2SW-3L3TS - Omron Electronics Inc-EMC Div

Manufacturer Part Number
D2SW-3L3TS
Manufacturer
Omron Electronic Components
Allelco Part Number
98D-D2SW-3L3TS
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
SWITCH SNAP ACTION SPDT 3A 125V
Package
Tray
Data sheet
1.D2SW-3L3TS.pdf ...

Other Related Documents

Cylindrical Battery Holders.pdf
RoHs Status
RoHS Compliant
Compare
Our certification
In stock: 31819
  • Unit Price: $1.016
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $1.016 $1.02
200+ $0.405 $81.00
500+ $0.392 $196.00
1000+ $0.385 $385.00
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

D2SW-3L3TS Tech Specifications
Omron Electronics Inc-EMC Div - D2SW-3L3TS technical specifications, attributes, parameters and parts with similar specifications to Omron Electronics Inc-EMC Div - D2SW-3L3TS

Product Attribute Attribute Value
Manufacturer Omron Electronic Components
Voltage Rating - DC 30 V
Voltage Rating - AC 125 V
Termination Style Quick Connect - 0.110' (2.8mm)
Switch Function On-Mom
Series D2SW
Release Force 6.118gf
Pretravel -
Package Tray
Overtravel 0.040' (1.0mm)
Operating Temperature -40°C ~ 85°C
Operating Position 0.420' (10.7mm)
Product Attribute Attribute Value
Operating Force 60gf
Mounting Type Chassis Mount
Mechanical Life 5,000,000 Cycles
Ingress Protection IP67 - Dust Tight, Waterproof
Features -
Electrical Life 200,000 Cycles
Differential Travel 0.031' (0.8mm)
Current Rating (Amps) 3A (AC/DC)
Circuit SPDT
Base Product Number D2S
Actuator Type Lever, Simulated Roller

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status RoHS Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000

Parts with Similar Specifications

The three parts on the right have similar specifications to Omron Electronics Inc-EMC Div D2SW-3L3TS

Product Attribute D2SW-3L3HS D2SW-3L3-3MS D2SW-3L3MS-0 D2SW-3L3MS
Part Number D2SW-3L3HS D2SW-3L3-3MS D2SW-3L3MS-0 D2SW-3L3MS
Manufacturer Omron Electronics Inc-EMC Div Omron Electronics Inc-EMC Div Omron Electronics Inc-EMC Div Omron Electronics Inc-EMC Div
Base Product Number - DAC34H84 MAX500 ADS62P42
Current Rating (Amps) - - - -
Switch Function - - - -
Operating Temperature - -40°C ~ 85°C 0°C ~ 70°C -40°C ~ 85°C
Release Force - - - -
Operating Force - - - -
Pretravel - - - -
Operating Position - - - -
Differential Travel - - - -
Actuator Type - - - -
Mechanical Life - - - -
Termination Style - - - -
Mounting Type - Surface Mount Through Hole Surface Mount
Circuit - - - -
Ingress Protection - - - -
Package - Tape & Reel (TR) Tube Tape & Reel (TR)
Voltage Rating - DC - - - -
Electrical Life - - - -
Features - - - Simultaneous Sampling
Voltage Rating - AC - - - -
Overtravel - - - -
Series - - - -
