HomeProductsSwitchesLimit SwitchesV-156-3A5

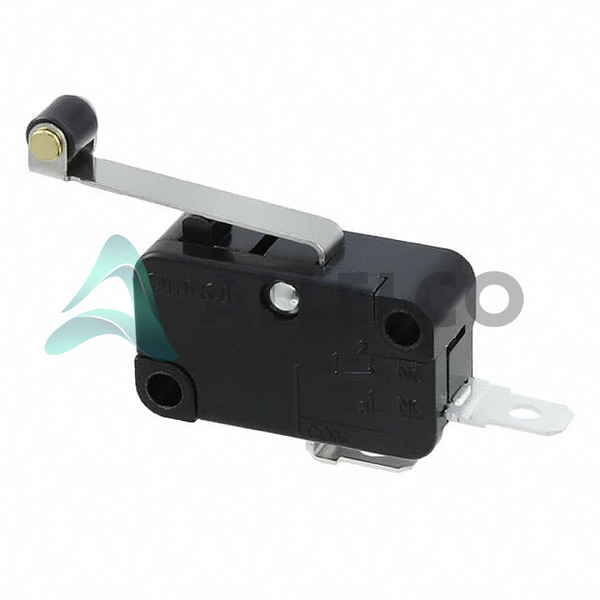

V-156-3A5 Image
V-156-3A5 Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

V-156-3A5 - Omron Electronics Inc-EMC Div

Manufacturer Part Number
V-156-3A5
Manufacturer
Omron Electronic Components
Allelco Part Number
98D-V-156-3A5
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
SWITCH SNAP ACT SPST-NO 15A 250V
Package
Bulk
Data sheet
1.V-156-3A5.pdf ...

Other Related Documents

Cylindrical Battery Holders.pdf
RoHs Status
RoHS Compliant
Compare
Our certification
In stock: 45783
  • Unit Price: $0.916
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $0.916 $0.92
200+ $0.366 $73.20
500+ $0.353 $176.50
1000+ $0.347 $347.00
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

V-156-3A5 Tech Specifications
Omron Electronics Inc-EMC Div - V-156-3A5 technical specifications, attributes, parameters and parts with similar specifications to Omron Electronics Inc-EMC Div - V-156-3A5

Product Attribute Attribute Value
Manufacturer Omron Electronic Components
Voltage Rating - DC 125 V
Voltage Rating - AC 250 V
Termination Style Solder, Quick Connect - 0.187' (4.7mm)
Switch Function Off-Mom
Series V
Release Force 14gf
Pretravel 0.157' (4.0mm)
Package Bulk
Overtravel 0.062' (1.6mm)
Operating Temperature -25°C ~ 80°C
Operating Position 0.815' (20.7mm)
Product Attribute Attribute Value
Operating Force 125gf
Mounting Type Chassis Mount
Mechanical Life 50,000,000 Cycles
Ingress Protection IP40
Features -
Electrical Life 100,000 Cycles
Differential Travel 0.060' (1.5mm)
Current Rating (Amps) 15A (AC), 600mA (DC)
Circuit SPST-NO
Base Product Number V-156
Actuator Type Lever, Roller

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status RoHS Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9040

Parts with Similar Specifications

The three parts on the right have similar specifications to Omron Electronics Inc-EMC Div V-156-3A5

Product Attribute V-156-1A5-T V-156-1A5 V-156-1A6 V-15G-1A5-T-K BY OMI
Part Number V-156-1A5-T V-156-1A5 V-156-1A6 V-15G-1A5-T-K BY OMI
Manufacturer Omron Electronics Inc-EMC Div Omron Electronics Inc-EMC Div Omron Electronics Inc-EMC Div Omron Electronics Inc-EMC Div
Series - - - -
Electrical Life - - - -
Circuit - - - -
Release Force - - - -
Overtravel - - - -
Operating Force - - - -
Actuator Type - - - -
Mechanical Life - - - -
Differential Travel - - - -
Pretravel - - - -
Termination Style - - - -
Switch Function - - - -
Voltage Rating - AC - - - -
Features - - - Simultaneous Sampling
Voltage Rating - DC - - - -
Operating Temperature - -40°C ~ 85°C 0°C ~ 70°C -40°C ~ 85°C
Base Product Number - DAC34H84 MAX500 ADS62P42
Ingress Protection - - - -
Operating Position - - - -
Mounting Type - Surface Mount Through Hole Surface Mount
Current Rating (Amps) - - - -
Package - Tape & Reel (TR) Tube Tape & Reel (TR)
