HomeProductsConnectors, InterconnectsD-Sub Connector AssembliesXM2F-1540-132L

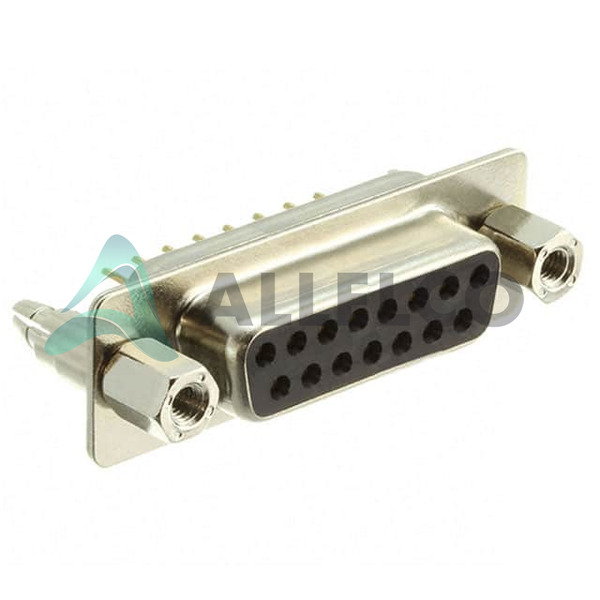

XM2F-1540-132L Image
XM2F-1540-132L Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

XM2F-1540-132L - Omron Electronics Inc-EMC Div

Manufacturer Part Number
XM2F-1540-132L
Manufacturer
Omron Electronic Components
Allelco Part Number
98D-XM2F-1540-132L
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
CONN D-SUB RCPT 15POS VERT SLDR
Package
Tray
Data sheet
1.XM2F-1540-132L.pdf ...

Other Related Documents

How to Read Date Codes.pdf

PCN Design/Specification

Multiple Devices Marking Jan/2018.pdf

PCN Obsolescence/ EOL

Mult Dev OBS Jun/2021.pdf
RoHs Status
RoHS Compliant
Compare
Our certification
In stock: 30682
  • Unit Price: $5.974
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $5.974 $5.97
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

XM2F-1540-132L Tech Specifications
Omron Electronics Inc-EMC Div - XM2F-1540-132L technical specifications, attributes, parameters and parts with similar specifications to Omron Electronics Inc-EMC Div - XM2F-1540-132L

Product Attribute Attribute Value
Manufacturer Omron Electronic Components
Wire Gauge -
Voltage Rating 300V
Termination Solder
Shell Size, Connector Layout 2 (DA, A)
Shell Material, Finish Steel, Nickel Plated
Series XM2F
Package Tray
Operating Temperature -25°C ~ 105°C
Number of Rows 2
Number of Positions 15
Mounting Type Through Hole
Material Flammability Rating UL94 V-0
Ingress Protection -
Product Attribute Attribute Value
Flange Feature Mating Side, Female Screwlock (4-40)
Features Board Lock, Shielded
Dielectric Material Polybutylene Terephthalate (PBT), Glass Filled
Current Rating (Amps) 3A
Contact Type Signal
Contact Material Phosphor Bronze
Contact Form -
Contact Finish Thickness Flash
Contact Finish Gold
Connector Type Receptacle, Female Sockets
Connector Style D-Sub
Color Black
Base Product Number XM2F
Backset Spacing -

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status RoHS Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040

Parts with Similar Specifications

The three parts on the right have similar specifications to Omron Electronics Inc-EMC Div XM2F-1540-132L

Product Attribute XM2F-1540-212L XM2F-2540-132L XM2F-1540-112L XM2F-2540-112L
Part Number XM2F-1540-212L XM2F-2540-132L XM2F-1540-112L XM2F-2540-112L
Manufacturer Omron Electronics Inc-EMC Div Omron Electronics Inc-EMC Div Omron Electronics Inc-EMC Div Omron Electronics Inc-EMC Div
Contact Finish Thickness - - - -
Color - - - -
Connector Style - - - -
Wire Gauge - - - -
Material Flammability Rating - - - -
Dielectric Material - - - -
Operating Temperature - -40°C ~ 85°C 0°C ~ 70°C -40°C ~ 85°C
Base Product Number - DAC34H84 MAX500 ADS62P42
Contact Type - - - -
Connector Type - - - -
Termination - - - -
Number of Positions - - - -
Shell Material, Finish - - - -
Backset Spacing - - - -
Number of Rows - - - -
Features - - - Simultaneous Sampling
Package - Tape & Reel (TR) Tube Tape & Reel (TR)
Contact Material - - - -
Ingress Protection - - - -
Series - - - -
Voltage Rating - - - -
Shell Size, Connector Layout - - - -
Flange Feature - - - -
Contact Form - - - -
Current Rating (Amps) - - - -
Mounting Type - Surface Mount Through Hole Surface Mount
Contact Finish - - - -

XM2F-1540-132L Datasheet PDF
