Specifications

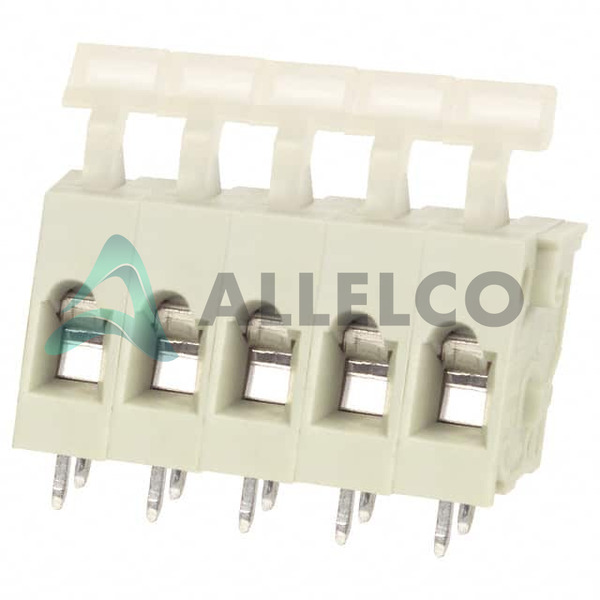

ED3101/5-WD Tech Specifications
On Shore Technology Inc. - ED3101/5-WD technical specifications, attributes, parameters and parts with similar specifications to On Shore Technology Inc. - ED3101/5-WD
| Product Attribute |
Attribute Value
| |
| Manufacturer |
On-Shore Technology, Inc. |
|
| Wire Termination |
Screwless - Leg Spring, Push-In Spring |
|
| Wire Gauge |
14-28 AWG |
|
| Voltage |
300 V |
|
| Torque - Screw |
- |
|
| Series |
ED3101/WD |
|
| Screw Thread |
- |
|
| Screw Material - Plating |
- |
|
| Positions Per Level |
5 |
|
| Pitch |
0.197" (5.00mm) |
|
| Package |
Bulk |
|
| Product Attribute |
Attribute Value
| |
| Operating Temperature |
-30°C ~ 105°C |
|
| Number of Levels |
1 |
|
| Mounting Type |
Through Hole |
|
| Mating Orientation |
Horizontal with Board |
|
| Housing Material |
Polyamide (PA), Nylon |
|
| Features |
Interlocking (Side), Lever Actuated |
|
| Current |
16 A |
|
| Contact Material - Plating |
- |
|
| Color |
Gray, Slate |
|
| Clamp Material - Plating |
Steel, Stainless |
|
| Base Product Number |
ED3101 |
|
