Specifications

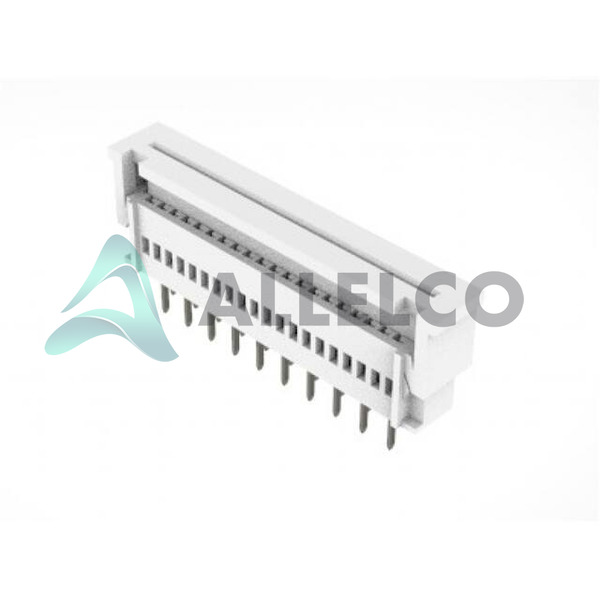

2533-08TRU Tech Specifications
Oupiin - 2533-08TRU technical specifications, attributes, parameters and parts with similar specifications to Oupiin - 2533-08TRU
| Product Attribute |
Attribute Value
| |
| Manufacturer |
Oupiin |
|
| Voltage Rating |
- |
|
| Termination |
Solder |
|
| Series |
2533 |
|
| Pitch |
0.049" (1.25mm) |
|
| Package |
Tube |
|
| Operating Temperature |
-55°C ~ 105°C |
|
| Number of Positions |
8 |
|
| Mounting Type |
Through Hole, Right Angle |
|
| Mating Cycles |
- |
|
| Material Flammability Rating |
UL94 V-0 |
|
| Locking Feature |
Slide Lock |
|
| Housing Material |
Polybutylene Terephthalate (PBT) |
|
| Housing Color |
White |
|
| Product Attribute |
Attribute Value
| |
| Height Above Board |
0.197" (5.00mm) |
|
| Flat Flex Type |
FFC, FPC |
|
| Features |
Zero Insertion Force (ZIF) |
|
| FFC, FCB Thickness |
0.30mm |
|
| Current Rating (Amps) |
1A |
|
| Contact Material |
Phosphor Bronze |
|
| Contact Finish Thickness |
80.0µin (2.03µm) |
|
| Contact Finish |
Tin |
|
| Connector/Contact Type |
Contacts, Top |
|
| Cable End Type |
Straight |
|
| Base Product Number |
2533 |
|
| Actuator Material |
- |
|
| Actuator Color |
- |
|
