Specifications

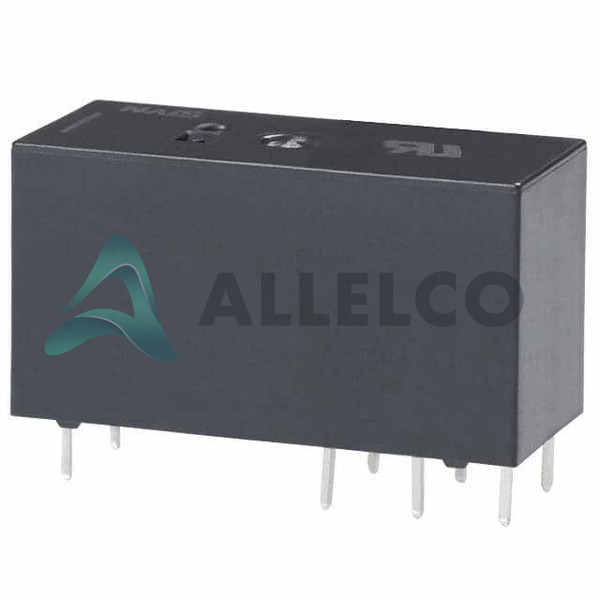

ALZ22F09W Tech Specifications
Panasonic Electric Works - ALZ22F09W technical specifications, attributes, parameters and parts with similar specifications to Panasonic Electric Works - ALZ22F09W
| Product Attribute |
Attribute Value
| |
| Manufacturer |
Panasonic |
|
| Termination Style |
PC Pin |
|
| Switching Voltage |
440VAC - Max |
|
| Series |
ALZ |
|
| Seal Rating |
Sealed - Fully |
|
| Release Time |
5 ms |
|
| Relay Type |
General Purpose |
|
| Package |
Bulk |
|
| Operating Temperature |
-40°C ~ 105°C |
|
| Operate Time |
15 ms |
|
| Must Release Voltage |
0.9 VDC |
|
| Must Operate Voltage |
6.3 VDC |
|
| Product Attribute |
Attribute Value
| |
| Mounting Type |
Through Hole |
|
| Features |
- |
|
| Contact Rating (Current) |
16 A |
|
| Contact Material |
Silver Tin Oxide (AgSnO) |
|
| Contact Form |
SPST-NO (1 Form A) |
|
| Coil Voltage |
9VDC |
|
| Coil Type |
Non Latching |
|
| Coil Resistance |
203 Ohms |
|
| Coil Insulation |
Class F |
|
| Coil Current |
44.4 mA |
|
| Base Product Number |
ALZ22F |
|
