Specifications

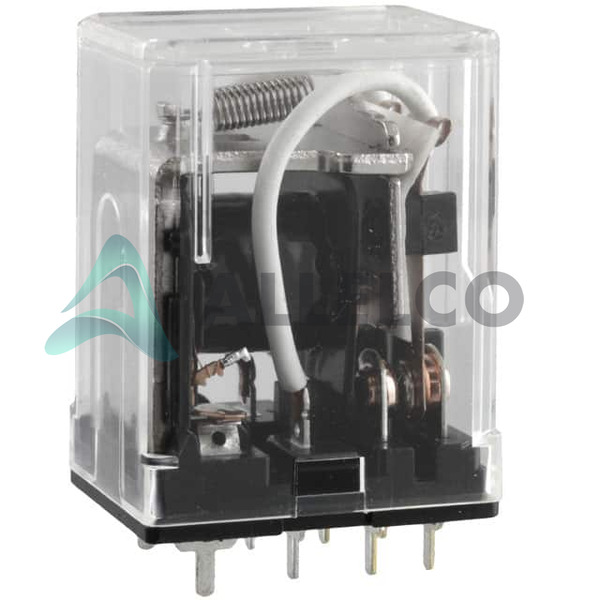

HL1-HP-DC24V-F Tech Specifications
Panasonic Electric Works - HL1-HP-DC24V-F technical specifications, attributes, parameters and parts with similar specifications to Panasonic Electric Works - HL1-HP-DC24V-F
| Product Attribute |
Attribute Value
| |
| Manufacturer |
Panasonic |
|
| Termination Style |
PC Pin |
|
| Switching Voltage |
125VAC - Nom |
|
| Series |
HL |
|
| Seal Rating |
- |
|
| Release Time |
5 ms |
|
| Relay Type |
General Purpose |
|
| Package |
Bulk |
|
| Operating Temperature |
-50°C ~ 70°C |
|
| Operate Time |
10 ms |
|
| Must Release Voltage |
2.4 VDC |
|
| Must Operate Voltage |
19.2 VDC |
|
| Product Attribute |
Attribute Value
| |
| Mounting Type |
Through Hole |
|
| Features |
- |
|
| Contact Rating (Current) |
15 A |
|
| Contact Material |
Silver Tin Oxide (AgSnO) |
|
| Contact Form |
SPDT (1 Form C) |
|
| Coil Voltage |
24VDC |
|
| Coil Type |
Non Latching |
|
| Coil Resistance |
650 Ohms |
|
| Coil Insulation |
- |
|
| Coil Current |
37 mA |
|
| Base Product Number |
HL1-HP |
|
