Home Products Sensors, Transducers Optical Sensors - Photointerrupters - Slot Type - Transistor Output~~PM-R24-R~~

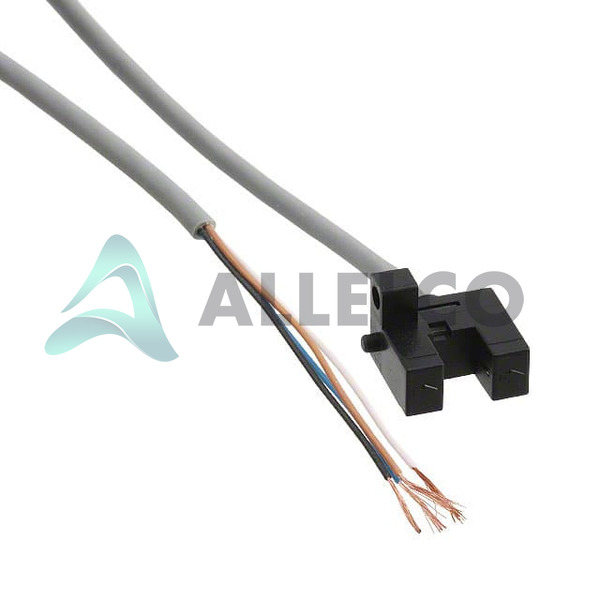

Image may be representation.
See specifications for product details.

~~Favorite~~

EXPRESS OPTION

Payment method

PM-R24-R - Panasonic Industrial Automation Sales

Manufacturer Part Number: PM-R24-R

Manufacturer: Panasonic

Allelco Part Number: 98D-PM-R24-R

Warranty: 1 Year Allelco Warranty - Find out more

Parts Description: SENSOR OPT SLOT NPN MODULE

Package: Module, Wire Leads, Slot Type

Data sheet: 1.PM-R24-R.pdf ...

Datasheets
Cylindrical Battery Holders.pdf

PCN Obsolescence/ EOL
Cylindrical Battery Holders.pdf

RoHs Status: RoHS Compliant

~~Compare~~

Our certification

In stock: 4071

EXPRESS OPTION

Payment method

Our certification

Specifications

PM-R24-R Tech Specifications
Panasonic Industrial Automation Sales - PM-R24-R technical specifications, attributes, parameters and parts with similar specifications to Panasonic Industrial Automation Sales - PM-R24-R

Product Attribute	Attribute Value
Manufacturer	Panasonic
Voltage - Collector Emitter Breakdown (Max)	30 V
Type	Unamplified
Series	PM-24
Sensing Method	Through-Beam
Sensing Distance	0.197' (5mm)
Response Time	20µs

Product Attribute	Attribute Value
Package / Case	Module, Wire Leads, Slot Type
Package	Bulk
Output Configuration	NPN - Dark-ON/Light-ON - Selectable
Operating Temperature	-25°C ~ 55°C
Mounting Type	Chassis Mount
Current - DC Forward (If) (Max)	50 mA
Current - Collector (Ic) (Max)	15 mA

Environmental & Export Classifications

ATTRIBUTE	DESCRIPTION
RoHs Status	RoHS Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN	EAR99
HTSUS	8543.70.9860

Parts with Similar Specifications

The three parts on the right have similar specifications to Panasonic Industrial Automation Sales PM-R24-R

Product Attribute
Part Number	PM-R24-C3	PM-R24P	PM-R44P-C3	PM-R44-C3
Manufacturer	Panasonic Industrial Automation Sales	Panasonic Industrial Automation Sales	Panasonic Industrial Automation Sales	Panasonic Industrial Automation Sales
Operating Temperature	-	-40°C ~ 85°C	0°C ~ 70°C	-40°C ~ 85°C
Package / Case	-	196-LFBGA	16-DIP (0.300', 7.62mm)	64-VFQFN Exposed Pad
Package	-	Tape & Reel (TR)	Tube	Tape & Reel (TR)
Current - DC Forward (If) (Max)	-	-	-	-
Voltage - Collector Emitter Breakdown (Max)	-	-	-	-
Output Configuration	-	-	-	-
Current - Collector (Ic) (Max)	-	-	-	-
Type	-	-	-	-
Response Time	-	-	-	-
Series	-	-	-	-
Sensing Distance	-	-	-	-
Mounting Type	-	Surface Mount	Through Hole	Surface Mount
Sensing Method	-	-	-	-

PM-R24-R Datasheet PDF

Download PM-R24-R pdf datasheets and Panasonic Industrial Automation Sales documentation for PM-R24-R - Panasonic Industrial Automation Sales.

Datasheets: Cylindrical Battery Holders.pdf
PCN Obsolescence/ EOL: Cylindrical Battery Holders.pdf
