HomeProductsIntegrated Circuits (ICs)PMIC - AC DC Converters, Offline SwitchersTOP246GN-TL

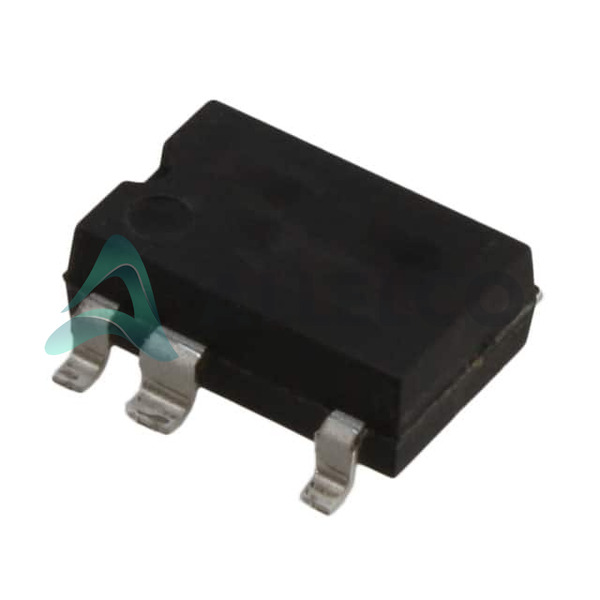

TOP246GN-TL Image
TOP246GN-TL Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

TOP246GN-TL - Power Integrations

Manufacturer Part Number
TOP246GN-TL
Manufacturer
Power Integrations
Allelco Part Number
32D-TOP246GN-TL
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
IC OFFLINE SWITCH FLYBACK 8SMD
Package
SMD-8B
Data sheet
1.TOP246GN-TL.pdf ...

Datasheets

TOP242-250.pdf
RoHs Status
RoHS Compliant
Compare
Our certification
In stock: 13949
  • Unit Price: $3.005
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $3.005 $3.01
10+ $2.62 $26.20
30+ $2.39 $71.70
100+ $2.158 $215.80
500+ $2.051 $1,025.50
1000+ $2.003 $2,003.00
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

TOP246GN-TL Tech Specifications
Power Integrations - TOP246GN-TL technical specifications, attributes, parameters and parts with similar specifications to Power Integrations - TOP246GN-TL

Product Attribute Attribute Value
Manufacturer Power Integrations
Voltage - Supply (Vcc/Vdd) -
Voltage - Breakdown 700V
Topology Flyback
Supplier Device Package SMD-8B
Series TOPSwitch®-GX
Power (Watts) 34 W
Package / Case 8-SMD (7 Leads), Gull Wing
Package Tape & Reel (TR)
Product Attribute Attribute Value
Output Isolation Isolated
Operating Temperature -40°C ~ 150°C (TJ)
Mounting Type Surface Mount
Internal Switch(s) Yes
Frequency - Switching 66kHz ~ 132kHz
Fault Protection Current Limiting, Over Temperature, Over Voltage
Duty Cycle 66.5%
Control Features Frequency Control
Base Product Number TOP246

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status RoHS Compliant
Moisture Sensitivity Level (MSL) 4 (72 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001

Parts Introduction

Manufacturer Part Number

TOP246GN-TL

Manufacturer

power-integrations

Introduction

The TOP246GN-TL is a highly integrated offline switcher from Power Integrations. It combines a high-voltage power switch, oscillator, control and protection circuitry in a single monolithic IC. This device offers a comprehensive set of features and protection mechanisms, making it a reliable and efficient solution for a wide range of AC-DC power conversion applications.

Product Features and Performance

High-voltage power switch with 700V voltage breakdown

Flyback topology for efficient power conversion

Switching frequency between 66kHz and 132kHz

34W power output capability

Comprehensive fault protection including current limiting, over-temperature, and over-voltage

Frequency control for improved efficiency and reduced EMI

Product Advantages

Highly integrated design reduces component count and simplifies circuit implementation

Robust protection features ensure reliable and safe operation

Wide operating temperature range of -40°C to 150°C

Compact 8-pin SMD package for space-efficient PCB layout

Key Reasons to Choose This Product

Proven reliability and performance of the TOPSwitch-GX series

Efficient power conversion with flyback topology

Comprehensive protection mechanisms for enhanced system reliability

Ease of design and implementation with the highly integrated solution

Quality and Safety Features

Designed and manufactured to the highest quality standards

Compliance with relevant safety and regulatory requirements

Compatibility

The TOP246GN-TL is compatible with a wide range of AC-DC power conversion applications, such as adapters, chargers, and low-power industrial equipment.

Application Areas

AC-DC power supplies

Chargers and adapters for consumer electronics

Industrial and commercial equipment

General-purpose power conversion applications

Product Lifecycle

The TOP246GN-TL is an active product and is not currently nearing discontinuation. However, Power Integrations regularly introduces new and updated models in the TOPSwitch-GX series, so customers are advised to check with our sales team or visit our website for the latest product information and availability.

Parts with Similar Specifications

The three parts on the right have similar specifications to Power Integrations TOP246GN-TL

Product Attribute TOP246R-TL TOP245R-TL TOP246GN TOP246PN
Part Number TOP246R-TL TOP245R-TL TOP246GN TOP246PN
Manufacturer Power Integrations Power Integrations Power Integrations Power Integrations
Mounting Type - Surface Mount Through Hole Surface Mount
Frequency - Switching - - - -
Output Isolation - - - -
Package - Tape & Reel (TR) Tube Tape & Reel (TR)
Internal Switch(s) - - - -
Package / Case - 196-LFBGA 16-DIP (0.300', 7.62mm) 64-VFQFN Exposed Pad
Voltage - Breakdown - - - -
Supplier Device Package - 196-NFBGA (12x12) 16-PDIP 64-VQFN (9x9)
Fault Protection - - - -
Topology - - - -
Base Product Number - DAC34H84 MAX500 ADS62P42
Power (Watts) - - - -
Voltage - Supply (Vcc/Vdd) - - - -
Series - - - -
Control Features - - - -
Operating Temperature - -40°C ~ 85°C 0°C ~ 70°C -40°C ~ 85°C
Duty Cycle - - - -

TOP246GN-TL Datasheet PDF
