Home Products RF/IF and RFID RF Antennas~~RAZ62312DM~~

Image may be representation.
See specifications for product details.

~~Favorite~~

EXPRESS OPTION

Payment method

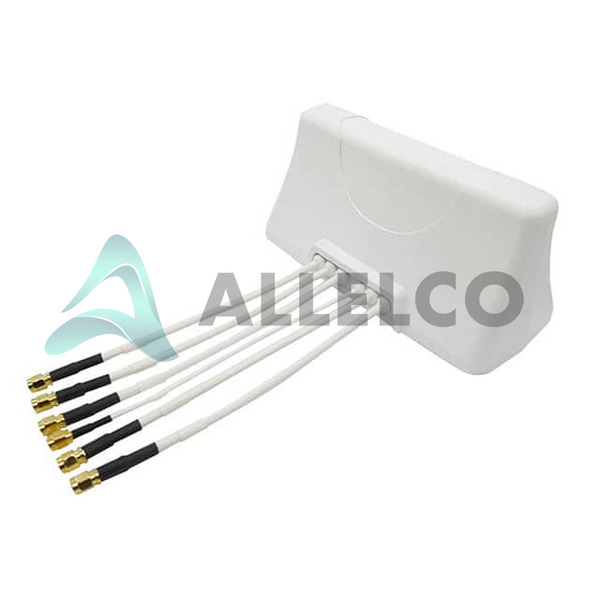

RAZ62312DM - Pulse Electronics

Manufacturer Part Number: RAZ62312DM

Manufacturer: Pulse Electronics

Allelco Part Number: 98D-RAZ62312DM

Warranty: 1 Year Allelco Warranty - Find out more

Parts Description: RF ANT 802MHZ/1.582GHZ MOD PANEL

Package: Bulk

Data sheet: 1.RAZ62312DM.pdf ...

HTML Datasheet
RAZyyyyyDM Series, Razorback.pdf

Environmental Information
Pulse Larson REACH.pdf

RoHs Status: ROHS3 Compliant

~~Compare~~

Our certification

In stock: 47619

Unit Price: $79.986
Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity	Unit Price	Ext. Price
1+	$79.986	$79.99
200+	$31.916	$6,383.20
500+	$30.849	$15,424.50
1000+	$30.322	$30,322.00

The above prices does not include taxes and freight rates, which will be calculated on the order pages.

EXPRESS OPTION

Payment method

Our certification

Specifications

RAZ62312DM Tech Specifications
Pulse Electronics - RAZ62312DM technical specifications, attributes, parameters and parts with similar specifications to Pulse Electronics - RAZ62312DM

Product Attribute	Attribute Value
Manufacturer	Pulse Electronics
VSWR	2
Termination	SMA Male (3), RP-SMA Male (3)
Series	RAZORBACK
Return Loss	-
RF Family/Standard	Cellular, Navigation, WiFi
Power - Max	45 W
Package	Bulk
Number of Bands	6
Mounting Type	Panel Mount

Product Attribute	Attribute Value
Ingress Protection	IP67
Height (Max)	3.644" (92.55mm)
Gain	4.6dBi, 4.9dBi, 6dBi, 6.6dBi
Frequency Range	644MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.71GHz ~ 2.69GHz, 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.925GHz
Frequency Group	Wide Band
Frequency (Center/Band)	802MHz, 1.582GHz, 2.2GHz, 2.45GHz, 5.537GHz
Features	Cable - 5.18m, LNA
Applications	GPS, LTE, Wi-Fi
Antenna Type	Module

Environmental & Export Classifications

ATTRIBUTE	DESCRIPTION
RoHs Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	7A994
HTSUS	8529.10.9100

Parts with Similar Specifications

The three parts on the right have similar specifications to Pulse Electronics RAZ62312DM

Product Attribute
Part Number	RAZ62311DM	RAZ62312AM	RAZ62312MM	RAZ62311MM
Manufacturer	Pulse Electronics	Pulse Electronics	Pulse Electronics	Pulse Electronics
Termination	-	-	-	-
VSWR	-	-	-	-
Package	-	Tape & Reel (TR)	Tube	Tape & Reel (TR)
Features	-	-	-	Simultaneous Sampling
Height (Max)	-	-	-	-
Return Loss	-	-	-	-
Frequency Range	-	-	-	-
Ingress Protection	-	-	-	-
Series	-	-	-	-
Number of Bands	-	-	-	-
Gain	-	-	-	-
Antenna Type	-	-	-	-
Frequency Group	-	-	-	-
Mounting Type	-	Surface Mount	Through Hole	Surface Mount
Power - Max	-	-	-	-
RF Family/Standard	-	-	-	-
Applications	-	-	-	-
Frequency (Center/Band)	-	-	-	-

RAZ62312DM Datasheet PDF

Download RAZ62312DM pdf datasheets and Pulse Electronics documentation for RAZ62312DM - Pulse Electronics.

HTML Datasheet: RAZyyyyyDM Series, Razorback.pdf
Environmental Information: Pulse Larson REACH.pdf
