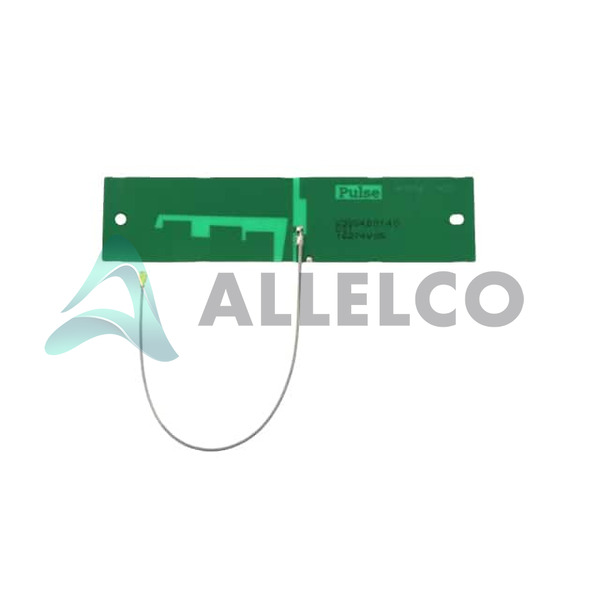

Image may be representation.
See specifications for product details.

~~Favorite~~

EXPRESS OPTION

Payment method

W3554B0140T - Pulse Electronics

Name: Pulse Electronics W3554B0140T
Brand: Pulse Electronics
SKU: W3554B0140T
Price: 0.592 USD
Availability: InStock
Rating: 5 (2 reviews)

Manufacturer Part Number: W3554B0140T

Manufacturer: Pulse Electronics

Allelco Part Number: 98D-W3554B0140T

Warranty: 1 Year Allelco Warranty - Find out more

Parts Description: PCB WITH ADHESIVE ANTENNA NPB

Package: Bulk

Data sheet: 1.W3554B0140T.pdf ...

HTML Datasheet
W3554xxyyy Series.pdf

Environmental Information
Pulse Larson REACH.pdf

RoHs Status: ROHS3 Compliant

~~Compare~~

Our certification

In stock: 28204

Unit Price: $1.56
Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity	Unit Price	Ext. Price
1+	$1.56	$1.56
200+	$0.623	$124.60
500+	$0.602	$301.00
1000+	$0.592	$592.00

The above prices does not include taxes and freight rates, which will be calculated on the order pages.

EXPRESS OPTION

Payment method

Our certification

Specifications

W3554B0140T Tech Specifications
Pulse Electronics - W3554B0140T technical specifications, attributes, parameters and parts with similar specifications to Pulse Electronics - W3554B0140T

Product Attribute	Attribute Value
Manufacturer	Pulse Electronics
VSWR	-
Termination	U.FL (UMCC), IPEX MHF1
Series	Internal PCB Antenna
Return Loss	-4dB, -6dB
Power - Max	5 W
Package	Bulk
Number of Bands	5
Mounting Type	Surface Mount

Product Attribute	Attribute Value
Ingress Protection	-
Height (Max)	0.008" (0.20mm)
Gain	1.9dBi, 3.2dBi
Frequency Range	698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz
Frequency Group	Wide Band
Frequency (Center/Band)	829MHz, 1.5GHz, 2.2GHz, 3.55GHz, 5.45GHz
Features	Cable - 143mm
Applications	General Purpose
Antenna Type	PCB Trace

Environmental & Export Classifications

ATTRIBUTE	DESCRIPTION
RoHs Status	ROHS3 Compliant
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8529.10.9100

Parts with Similar Specifications

The three parts on the right have similar specifications to Pulse Electronics W3554B0140T

Product Attribute
Part Number	W3554B0140	W3554B0170	W3554G0100	W3554E0193
Manufacturer	Pulse Electronics	Pulse Electronics	Pulse Electronics	Pulse Electronics
Series	-	-	-	-
Termination	-	-	-	-
Applications	-	-	-	-
Mounting Type	-	Surface Mount	Through Hole	Surface Mount
Height (Max)	-	-	-	-
Frequency Range	-	-	-	-
Power - Max	-	-	-	-
VSWR	-	-	-	-
Frequency (Center/Band)	-	-	-	-
Package	-	Tape & Reel (TR)	Tube	Tape & Reel (TR)
Ingress Protection	-	-	-	-
Frequency Group	-	-	-	-
Return Loss	-	-	-	-
Gain	-	-	-	-
Features	-	-	-	Simultaneous Sampling
Number of Bands	-	-	-	-
Antenna Type	-	-	-	-
