Home Products Resistors Chassis Mount Resistors~~RSA-20-100-NB~~

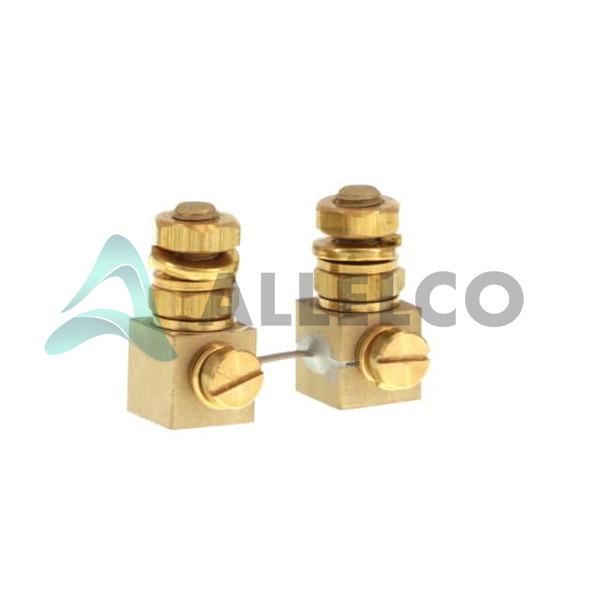

Image may be representation.
See specifications for product details.

~~Favorite~~

EXPRESS OPTION

Payment method

RSA-20-100-NB - Riedon

Name: Riedon RSA-20-100-NB
Brand: Riedon
SKU: RSA-20-100-NB
Price: 5.76 USD
Availability: InStock
Rating: 5 (1 reviews)

Manufacturer Part Number: RSA-20-100-NB

Manufacturer: Riedon

Allelco Part Number: 98D-RSA-20-100-NB

Warranty: 1 Year Allelco Warranty - Find out more

Parts Description: RES CHAS MNT 0.005 OHM .25% 2W N

Package: Rectangular Case

Data sheet: 1.RSA-20-100-NB.pdf ...

Datasheets
RS Series Datasheet.pdf

PCN Other
Shunt Resistors 12/Nov/2018.pdf

HTML Datasheet
RS Series Datasheet.pdf

Environmental Information
RoHS Certfiicate.pdf

RoHs Status: ROHS3 Compliant

~~Compare~~

Our certification

In stock: 36332

Unit Price: $15.20
Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity	Unit Price	Ext. Price
1+	$15.20	$15.20
200+	$6.06	$1,212.00
500+	$5.86	$2,930.00
1000+	$5.76	$5,760.00

The above prices does not include taxes and freight rates, which will be calculated on the order pages.

EXPRESS OPTION

Payment method

Our certification

Specifications

RSA-20-100-NB Tech Specifications
Riedon - RSA-20-100-NB technical specifications, attributes, parameters and parts with similar specifications to Riedon - RSA-20-100-NB

Product Attribute	Attribute Value
Manufacturer	Riedon
Tolerance	±0.25%
Temperature Coefficient	±15ppm/°C
Size / Dimension	2.000" L x 1.252" W (50.80mm x 31.80mm)
Series	RS
Resistance	5 mOhms
Package / Case	Rectangular Case
Package	Bulk

Product Attribute	Attribute Value
Operating Temperature	-40°C ~ 60°C
Mounting Feature	Flanges
Lead Style	M4 Threaded
Height - Seated (Max)	1.700" (43.18mm)
Features	Current Sense, Pulse Withstanding
Failure Rate	-
Composition	Metal Element
Coating, Housing Type	-

Environmental & Export Classifications

ATTRIBUTE	DESCRIPTION
RoHs Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.21.0090

Parts with Similar Specifications

The three parts on the right have similar specifications to Riedon RSA-20-100-NB

Product Attribute
Part Number	RSA-30-100-NB	RSA-100-100-NB	RSA-20-100	RSA-100-100
Manufacturer	Riedon	Riedon	Riedon	Riedon
Series	-	-	-	-
Coating, Housing Type	-	-	-	-
Size / Dimension	-	-	-	-
Lead Style	-	-	-	-
Package / Case	-	196-LFBGA	16-DIP (0.300', 7.62mm)	64-VFQFN Exposed Pad
Height - Seated (Max)	-	-	-	-
Package	-	Tape & Reel (TR)	Tube	Tape & Reel (TR)
Tolerance	-	-	-	-
Resistance	-	-	-	-
Features	-	-	-	Simultaneous Sampling
Mounting Feature	-	-	-	-
Temperature Coefficient	-	-	-	-
Operating Temperature	-	-40°C ~ 85°C	0°C ~ 70°C	-40°C ~ 85°C
Composition	-	-	-	-
Failure Rate	-	-	-	-

RSA-20-100-NB Datasheet PDF

Download RSA-20-100-NB pdf datasheets and Riedon documentation for RSA-20-100-NB - Riedon.

Datasheets: RS Series Datasheet.pdf
PCN Other: Shunt Resistors 12/Nov/2018.pdf
HTML Datasheet: RS Series Datasheet.pdf
Environmental Information: RoHS Certfiicate.pdf
