Home Products Integrated Circuits (ICs)Interface - Analog Switches, Multiplexers, Demultiplexers~~RS2166XF5~~

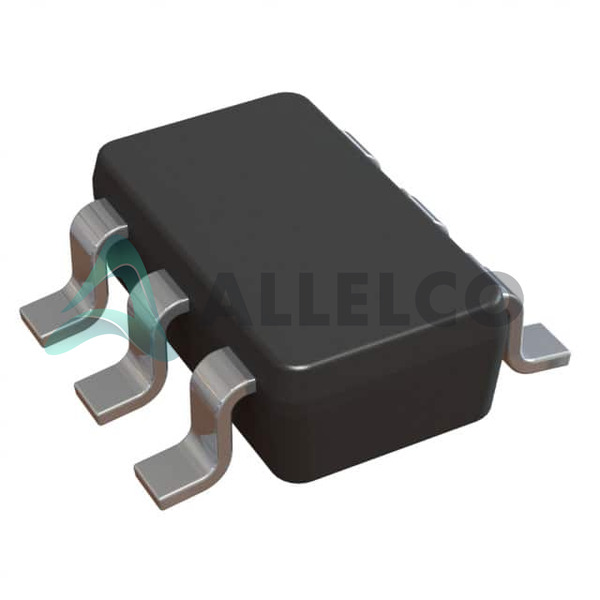

Image may be representation.
See specifications for product details.

~~Favorite~~

EXPRESS OPTION

Payment method

RS2166XF5 - Runic Technology

Manufacturer Part Number: RS2166XF5

Manufacturer: Runic Technology

Allelco Part Number: 98D-RS2166XF5

Warranty: 1 Year Allelco Warranty - Find out more

Parts Description: IC SWITCH SPST X 1 8OHM SOT23-5

Package: SOT-23-5

Data sheet: 1.RS2166XF5.pdf ...

Datasheets
RS2166.pdf

RoHs Status: ROHS3 Compliant

~~Compare~~

Our certification

In stock: 2645

Unit Price: $0.109
Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity	Unit Price	Ext. Price
5+	$0.109	$0.55
50+	$0.084	$4.20
150+	$0.072	$10.80
500+	$0.063	$31.50

The above prices does not include taxes and freight rates, which will be calculated on the order pages.

EXPRESS OPTION

Payment method

Our certification

Specifications

RS2166XF5 Tech Specifications
Runic Technology - RS2166XF5 technical specifications, attributes, parameters and parts with similar specifications to Runic Technology - RS2166XF5

Product Attribute	Attribute Value
Manufacturer	Runic Technology
Voltage - Supply, Single (V+)	1.8V ~ 5.5V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	30ns (Typ), 25ns (Typ)
Switch Circuit	SPST
Supplier Device Package	SOT-23-5
Series	-
Package / Case	SC-74A, SOT-753
Package	Tape & Reel (TR)
Operating Temperature	-40°C ~ 125°C

Product Attribute	Attribute Value
On-State Resistance (Max)	8Ohm
Number of Circuits	1
Multiplexer/Demultiplexer Circuit	1:1
Mounting Type	Surface Mount
Current - Leakage (IS(off)) (Max)	1µA
Crosstalk	-
Charge Injection	-
Channel-to-Channel Matching (ΔRon)	-
Channel Capacitance (CS(off), CD(off))	5pF, 5pF
-3db Bandwidth	300MHz

Environmental & Export Classifications

ATTRIBUTE	DESCRIPTION
RoHs Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.39.0001

Parts with Similar Specifications

The three parts on the right have similar specifications to Runic Technology RS2166XF5

Product Attribute
Part Number	RS2166XF5	RS2105XN	RS2103XH	RS2117YN
Manufacturer	Runic Technology	Runic Technology	Runic Technology	Runic Technology
Supplier Device Package	SOT-23-5	10-MSOP	SOT-23-6	10-MSOP
Multiplexer/Demultiplexer Circuit	1:1	2:1	2:1	2:1
Switch Time (Ton, Toff) (Max)	30ns (Typ), 25ns (Typ)	50ns (Typ), 15ns (Typ)	50ns (Typ), 15ns (Typ)	15ns (Typ), 10ns (Typ)
Switch Circuit	SPST	SPDT	SPDT	SPDT
On-State Resistance (Max)	8Ohm	1Ohm	1Ohm	7Ohm
Crosstalk	-	-	-	-52dB @ 10MHz
Number of Circuits	1	2	1	2
Package	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)
Voltage - Supply, Single (V+)	1.8V ~ 5.5V	1.8V ~ 5.5V	1.8V ~ 5.5V	2.5V ~ 5.5V
Voltage - Supply, Dual (V±)	-	-	-	-
Package / Case	SC-74A, SOT-753	10-TFSOP, 10-MSOP (0.118", 3.00mm Width)	SOT-23-6	10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Series	-	-	-	-
Operating Temperature	-40°C ~ 125°C	-40°C ~ 125°C	-40°C ~ 125°C	-40°C ~ 85°C (TA)
Channel Capacitance (CS(off), CD(off))	5pF, 5pF	80pF	80pF	10pF
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount
-3db Bandwidth	300MHz	30MHz	30MHz	400MHz
Current - Leakage (IS(off)) (Max)	1µA	1µA	1µA	1µA
Charge Injection	-	-	-	15pC
Channel-to-Channel Matching (ΔRon)	-	40mOhm (Typ)	40mOhm (Typ)	150mOhm (Typ)

RS2166XF5 Datasheet PDF

Download RS2166XF5 pdf datasheets and Runic Technology documentation for RS2166XF5 - Runic Technology.

Datasheets: RS2166.pdf
