Manufacturer Part Number

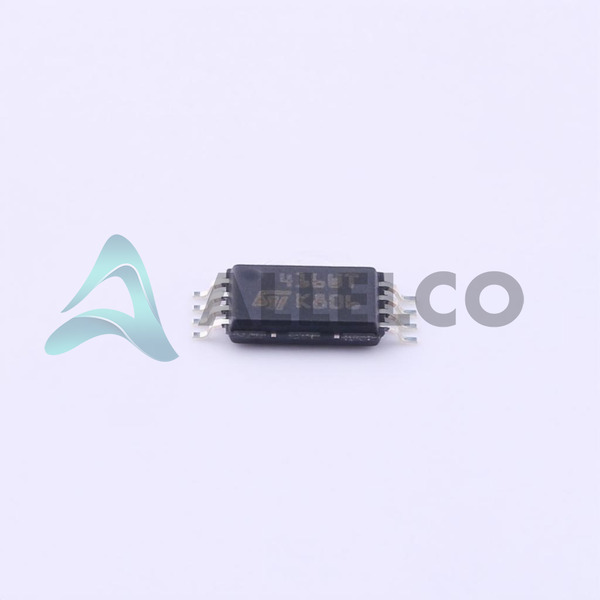

M24C16-WDW6TP
Manufacturer
STMicroelectronics
Introduction
M24C16-WDW6TP is an EEPROM (Electrically Erasable Programmable Read-Only Memory) chip used for non-volatile data storage.
Product Features and Performance
Non-Volatile EEPROM technology
16Kbit memory size
EEPROM memory format
2K x 8 memory organization
I2C memory interface for simple integration with microcontrollers
Up to 400 kHz clock frequency for fast data transfers
5 ms word, page write cycle time for efficient data writing
900 ns access time allowing quick data retrieval
Tape & Reel (TR) packaging for automated assembly processes
Product Advantages
STMicroelectronics' reputation for reliability and performance
Broad voltage supply range from 2.5V to 5.5V, adaptable to various circuits
Versatile operating temperature range (-40°C to 85°C) for harsh environments
Surface mounting technology for compact PCB designs
Key Technical Parameters
Voltage: 2.5V ~ 5.5V
Operating Temperature: -40°C ~ 85°C
Memory Size: 16Kbit
Memory Interface: I2C
Clock Frequency: 400 kHz
Write Cycle Time: 5ms
Access Time: 900 ns
Quality and Safety Features
Built to STMicroelectronics' stringent quality standards for industrial use
Compatibility
I2C interface allows compatibility with many microcontrollers and processors
8-TSSOP package is widely used and can be substituted in many standard board layouts
Application Areas
Consumer Electronics
Industrial Control Systems
Automotive Electronics
Data Logging Devices
Product Lifecycle
Not For New Designs, suggesting that the product is nearing the end of its life cycle, and customers should consider future availability
Several Key Reasons to Choose This Product
Stable data retention capabilities for reliable memory storage
High integration ease with I2C bus, enhancing system design simplicity
Wide operating voltage range suitable for diverse applications
Improved system-level reliability due to STMicroelectronics' quality manufacturing
Suitable for applications within a range broad temperature range
Availability in Tape & Reel for more efficient manufacturing processes
