Manufacturer Part Number

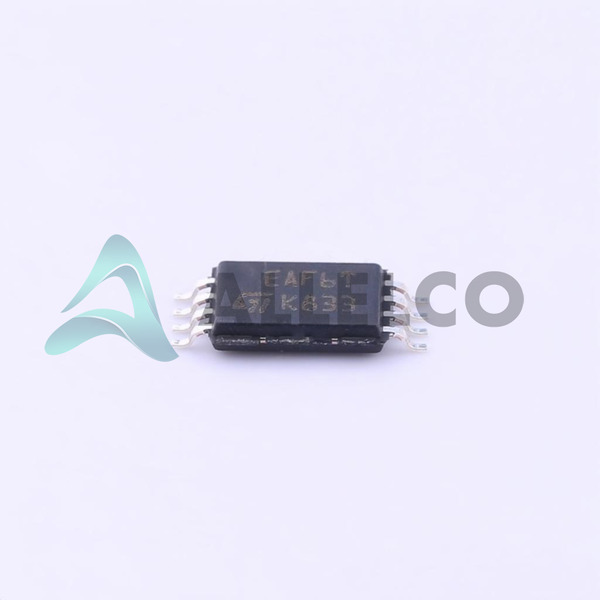

M34E02-FDW6TP
Manufacturer
STMicroelectronics
Introduction
M34E02-FDW6TP is an EEPROM device used for non-volatile data storage.
Product Features and Performance
EEPROM Memory Type
2Kbit Memory Size
Data retention of over 40 years
Endurance of 1 million write cycles
256 x 8 Memory Organization
I2C Memory Interface
400 kHz Clock Frequency
5 ms Write Cycle Time for Word or Page
900 ns Access Time
Product Advantages
Low-voltage operation from 1.7V to 5.5V
Compatible with I2C serial interface standards
High reliability with long data retention and endurance
Compact 8-TSSOP package conserves space on PCBs
Key Technical Parameters
EEPROM Technology
7V ~ 5.5V Supply Voltage
-40°C ~ 85°C Operating Temperature Range
5ms Write Cycle Time for Word, Page
900 ns Access Time
Quality and Safety Features
Extended temperature range for reliability in variable environments
Robust endurance and data retention specifications
Compatibility
General I2C bus compatible devices
Supports 400 kHz I2C Fast Mode
Application Areas
Automotive electronics
Industrial automation
Telecommunication systems
Consumer electronics
Data storage for configuration and calibration
Product Lifecycle
Active Product Status
Availability of replacements or upgrades to be evaluated through STMicroelectronics' product roadmap
Several Key Reasons to Choose This Product
Reliable non-volatile memory solution
Flexible I2C interface for simple integration
Wide operating voltage and temperature ranges suitable for various applications
Robust design ensuring data stability and endurance
Compact form factor for minimized PCB real estate usage
Manufacturer's reputation for quality and supporting infrastructure
