Manufacturer Part Number
M95M01-DFDW6TP
Manufacturer
STMicroelectronics
Introduction

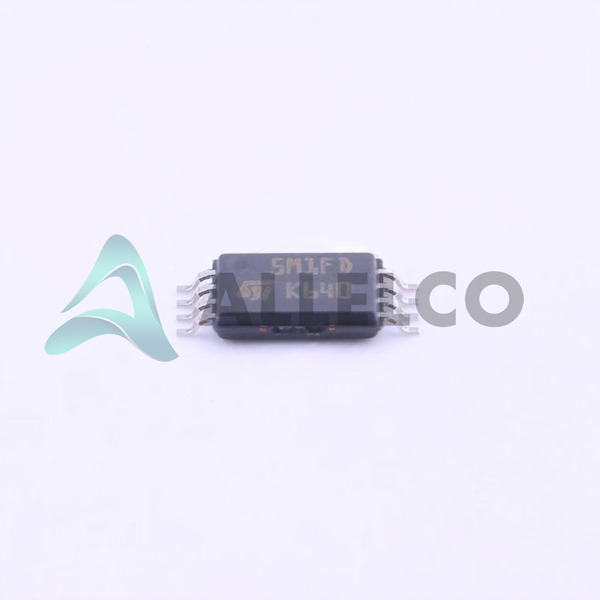

The M95M01-DFDW6TP is a 1Mbit non-volatile memory chip using EEPROM technology, provided in an 8-TSSOP package.
Product Features and Performance
Memory Type: Non-Volatile
Memory Format: EEPROM
Technology: EEPROM
Memory Size: 1Mbit
Memory Organization: 128K x 8
Memory Interface: SPI
Clock Frequency: 16 MHz
Write Cycle Time - Word, Page: 5ms
Voltage - Supply: 1.7V ~ 5.5V
Operating Temperature: -40°C ~ 85°C (TA)
Mounting Type: Surface Mount
Package / Case: 8-TSSOP (0.173", 4.40mm Width)
Product Advantages
Compact 8-TSSOP package suitable for space-constrained applications
Wide voltage and temperature range enhancing versatility and reliability in varied environmental conditions
Fast write cycle time facilitates quicker data management
Key Technical Parameters
Memory Size: 1Mbit
SPI Interface
Write Cycle Time: 5ms
Supply Voltage: 1.7V to 5.5V
Operating Temperature: -40°C to 85°C
Quality and Safety Features
EEPROM technology ensures data stability and reliability over extended periods.
Compatibility
Suitable for applications requiring standard SPI interface with compatibility across various microcontrollers.
Application Areas
Automotive electronics
Industrial automation
Consumer electronics
Data logging systems
Product Lifecycle
Product Status: Active
No nearing discontinuation; stable supply expected
Replacements or upgrades are typically available for this model within STMicroelectronics' product range.
Several Key Reasons to Choose This Product
High memory capacity in a small form factor
Low-voltage operation minimizing power consumption
Fast data access and high reliability ideal for both industrial and consumer applications
Broad compatibility with existing microcontroller setups via SPI
Durable design withstands harsh environmental conditions, enhancing product longevity
Active product status ensuring ongoing support and availability
