HomeProductsCircuit ProtectionTVS - DiodesSMBJ40CA-TR

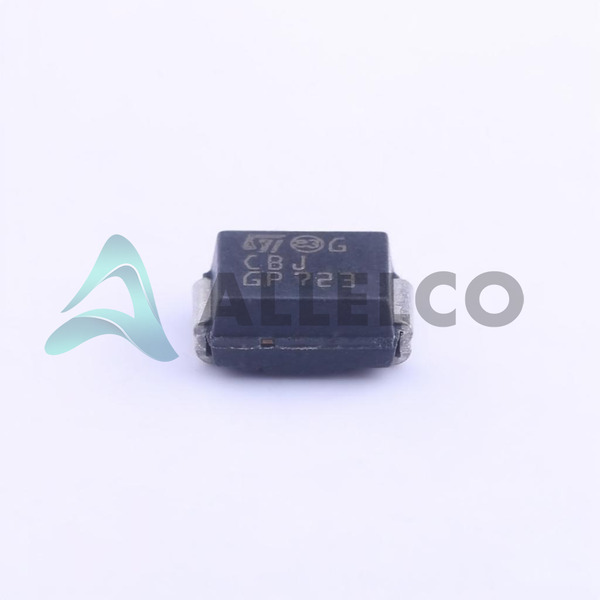

SMBJ40CA-TR Image
SMBJ40CA-TR Image - 1SMBJ40CA-TR Image - 2
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

SMBJ40CA-TR - STMicroelectronics

Manufacturer Part Number
SMBJ40CA-TR
Manufacturer
STMicroelectronics
Allelco Part Number
32D-SMBJ40CA-TR
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
TVS DIODE 40VWM 64.5VC SMB
Package
SMB (DO-214AA)
Data sheet
1.SMBJ40CA-TR.pdf ...

PCN Assembly/Origin

Assembly 17/Sep/2020.pdf

HTML Datasheet

SMBJ Datasheet.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 258780
  • Unit Price: $0.105
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
5+ $0.105 $0.53
50+ $0.086 $4.30
150+ $0.077 $11.55
500+ $0.067 $33.50
2500+ $0.062 $155.00
5000+ $0.059 $295.00
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

SMBJ40CA-TR Tech Specifications
STMicroelectronics - SMBJ40CA-TR technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics - SMBJ40CA-TR

Product Attribute Attribute Value
Manufacturer STMicroelectronics
Voltage - Reverse Standoff (Typ) 40V
Voltage - Clamping (Max) @ Ipp 64.5V
Voltage - Breakdown (Min) 44.4V
Type Zener
Supplier Device Package SMB (DO-214AA)
Series SMBJ, TRANSIL™
Power Line Protection No
Power - Peak Pulse 600W
Product Attribute Attribute Value
Package / Case DO-214AA, SMB
Package Tape & Reel (TR)
Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Current - Peak Pulse (10/1000µs) 9.7A
Capacitance @ Frequency -
Bidirectional Channels 1
Base Product Number SMBJ40
Applications General Purpose

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080

Parts Introduction

Manufacturer Part Number

SMBJ40CA-TR

Manufacturer

STMicroelectronics

Introduction

Transient Voltage Suppressor diode designed for surge and ESD protection

Product Features and Performance

Bidirectional TVS Diode

Surface Mount SMB (DO-214AA) package

Transil™ series designed for high transient overvoltage protection

Supports a broad range of operating temperatures

Product Advantages

Effective in protecting circuits against voltage transients

Bidirectional functionality suitable for AC applications or where the polarity is reversible

Low clamping voltage for enhanced protection

High surge current capability

Key Technical Parameters

Voltage - Reverse Standoff (Typ): 40V

Voltage - Breakdown (Min): 44.4V

Voltage - Clamping (Max) @ Ipp: 64.5V

Current - Peak Pulse (10/1000µs): 9.7A

Power - Peak Pulse: 600W

Quality and Safety Features

Robust construction for industrial-grade reliability

Meets international safety standards

Compatibility

Suitable for general-purpose applications where SMBJ series is specified

Compatible with surface mount technology processes

Application Areas

Used in a variety of electronic equipment for transient overvoltage protection

Product Lifecycle

Active status, not nearing discontinuation

SMB (DO-214AA) package widely used and supported

Several Key Reasons to Choose This Product

High-temperature range of operation from -55°C to 150°C ensures reliability in extreme conditions

Large power handling capacity of 600W for transient surges

The product is part of the reputable Transil™ series known for its protection capability

Availability in Tape & Reel packaging format enables efficient automated manufacturing

STMicroelectronics' global support and reliability

Parts with Similar Specifications

The three parts on the right have similar specifications to STMicroelectronics SMBJ40CA-TR

Product Attribute SMBJ40CAE3/TR13 SMBJ40CA-TP SMBJ40CAHE3-TP SMBJ40CA/TR7
Part Number SMBJ40CAE3/TR13 SMBJ40CA-TP SMBJ40CAHE3-TP SMBJ40CA/TR7
Manufacturer Microchip Technology Micro Commercial Co Micro Commercial Co YAGEO
Voltage - Reverse Standoff (Typ) - - - -
Power - Peak Pulse - - - -
Package / Case - 196-LFBGA 16-DIP (0.300', 7.62mm) 64-VFQFN Exposed Pad
Current - Peak Pulse (10/1000µs) - - - -
Type - - - -
Series - - - -
Applications - - - -
Voltage - Breakdown (Min) - - - -
Base Product Number - DAC34H84 MAX500 ADS62P42
Supplier Device Package - 196-NFBGA (12x12) 16-PDIP 64-VQFN (9x9)
Package - Tape & Reel (TR) Tube Tape & Reel (TR)
Capacitance @ Frequency - - - -
Bidirectional Channels - - - -
Mounting Type - Surface Mount Through Hole Surface Mount
Power Line Protection - - - -
Operating Temperature - -40°C ~ 85°C 0°C ~ 70°C -40°C ~ 85°C
Voltage - Clamping (Max) @ Ipp - - - -

SMBJ40CA-TR Datasheet PDF

Download SMBJ40CA-TR pdf datasheets and STMicroelectronics documentation for SMBJ40CA-TR - STMicroelectronics.

PCN Assembly/Origin
Assembly 17/Sep/2020.pdf
PCN Packaging
Box Label Chg 28/Jul/2016.pdf
HTML Datasheet
SMBJ Datasheet.pdf
