HomeProductsDiscrete Semiconductor ProductsTransistors - FETs, MOSFETs - SingleSTB36NM60N

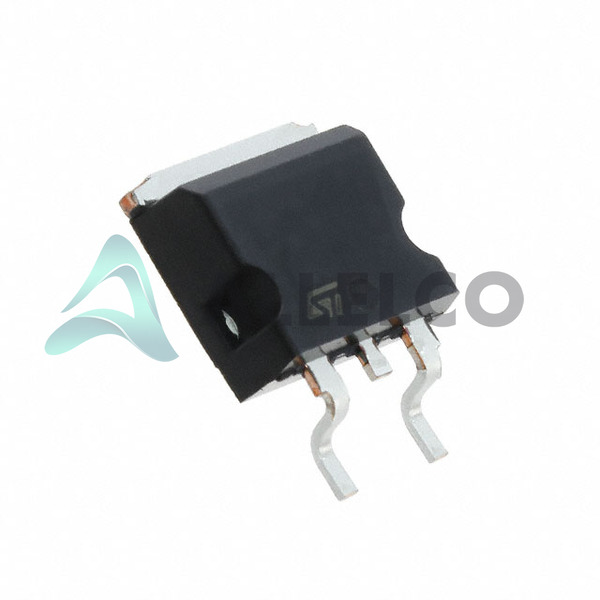

STB36NM60N Image
STB36NM60N Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

STB36NM60N - STMicroelectronics

Manufacturer Part Number
STB36NM60N
Manufacturer
STMicroelectronics
Allelco Part Number
32D-STB36NM60N
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
MOSFET N-CH 600V 29A D2PAK
Package
D²PAK (TO-263)
Data sheet
1.STB36NM60N.pdf ...

Datasheets

STB36NM60N.pdf

PCN Design/Specification

D2PAK Lead Modification 04/Oct/2013.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 6446
  • Unit Price: $2.883
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $2.883 $2.88
200+ $1.116 $223.20
500+ $1.077 $538.50
1000+ $1.057 $1,057.00
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

STB36NM60N Tech Specifications
STMicroelectronics - STB36NM60N technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics - STB36NM60N

Product Attribute Attribute Value
Manufacturer STMicroelectronics
Vgs(th) (Max) @ Id 4V @ 250µA
Vgs (Max) ±25V
Technology MOSFET (Metal Oxide)
Supplier Device Package D²PAK (TO-263)
Series Automotive, AEC-Q101, MDmesh™ II
Rds On (Max) @ Id, Vgs 105mOhm @ 14.5A, 10V
Power Dissipation (Max) 210W (Tc)
Package / Case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Package Tape & Reel (TR)
Product Attribute Attribute Value
Operating Temperature 150°C (TJ)
Mounting Type Surface Mount
Input Capacitance (Ciss) (Max) @ Vds 2722 pF @ 100 V
Gate Charge (Qg) (Max) @ Vgs 83.6 nC @ 10 V
FET Type N-Channel
FET Feature -
Drive Voltage (Max Rds On, Min Rds On) 10V
Drain to Source Voltage (Vdss) 600 V
Current - Continuous Drain (Id) @ 25°C 29A (Tc)
Base Product Number STB36

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99

Parts Introduction

Manufacturer Part Number

STB36NM60N

Manufacturer

STMicroelectronics

Introduction

The STB36NM60N is a high-performance, N-channel MOSFET transistor designed for automotive and industrial applications. It is part of the Automotive, AEC-Q101, and MDmesh II series.

Product Features and Performance

600V Drain-to-Source Voltage (Vdss)

±25V Gate-to-Source Voltage (Vgs)

105mΩ Maximum On-Resistance (Rds(on)) at 14.5A, 10V

29A Continuous Drain Current (Id) at 25°C

2722pF Maximum Input Capacitance (Ciss) at 100V

210W Maximum Power Dissipation (Tc)

4V Maximum Gate Threshold Voltage (Vgs(th)) at 250A

6nC Maximum Gate Charge (Qg) at 10V

Product Advantages

Robust design for automotive and industrial applications

Low on-resistance for improved efficiency

High voltage handling capability

Surface mount package (DPAK/TO-263) for compact design

Key Technical Parameters

Package: DPAK (TO-263)

Technology: MOSFET (Metal Oxide)

FET Type: N-Channel

Operating Temperature: 150°C (TJ)

Quality and Safety Features

RoHS3 Compliant

AEC-Q101 Qualified

Compatibility

Suitable for a wide range of automotive and industrial applications

Application Areas

Power conversion and control circuits

Motor drives

Switching power supplies

Industrial automation and control systems

Product Lifecycle

The STB36NM60N is an active product and is not nearing discontinuation.

Replacement or upgrade options may be available from STMicroelectronics.

Key Reasons to Choose This Product

Robust and reliable design for demanding applications

High voltage and current handling capabilities

Low on-resistance for improved efficiency

Surface mount package for compact design

AEC-Q101 qualification for automotive applications

RoHS3 compliance for environmental friendliness

Parts with Similar Specifications

The three parts on the right have similar specifications to STMicroelectronics STB36NM60N

Product Attribute STB36NM60ND STB36N60M6 STB3NK60ZT4 STB37N60DM2AG
Part Number STB36NM60ND STB36N60M6 STB3NK60ZT4 STB37N60DM2AG
Manufacturer STMicroelectronics STMicroelectronics STMicroelectronics STMicroelectronics
Package / Case - 196-LFBGA 16-DIP (0.300', 7.62mm) 64-VFQFN Exposed Pad
Input Capacitance (Ciss) (Max) @ Vds - - - -
Power Dissipation (Max) - - - -
Current - Continuous Drain (Id) @ 25°C - - - -
Operating Temperature - -40°C ~ 85°C 0°C ~ 70°C -40°C ~ 85°C
Vgs (Max) - - - -
FET Type - - - -
Supplier Device Package - 196-NFBGA (12x12) 16-PDIP 64-VQFN (9x9)
Rds On (Max) @ Id, Vgs - - - -
Drain to Source Voltage (Vdss) - - - -
Base Product Number - DAC34H84 MAX500 ADS62P42
Drive Voltage (Max Rds On, Min Rds On) - - - -
Vgs(th) (Max) @ Id - - - -
Series - - - -
Mounting Type - Surface Mount Through Hole Surface Mount
Technology - - - -
Package - Tape & Reel (TR) Tube Tape & Reel (TR)
Gate Charge (Qg) (Max) @ Vgs - - - -
FET Feature - - - -

STB36NM60N Datasheet PDF

Download STB36NM60N pdf datasheets and STMicroelectronics documentation for STB36NM60N - STMicroelectronics.

Datasheets
STB36NM60N.pdf
PCN Design/Specification
D2PAK Lead Modification 04/Oct/2013.pdf
PCN Assembly/Origin
Mult Devices Testing 10/May/2018.pdf
PCN Packaging
Mult Dev Inner Box Chg 9/Dec/2021.pdf
