Manufacturer Part Number

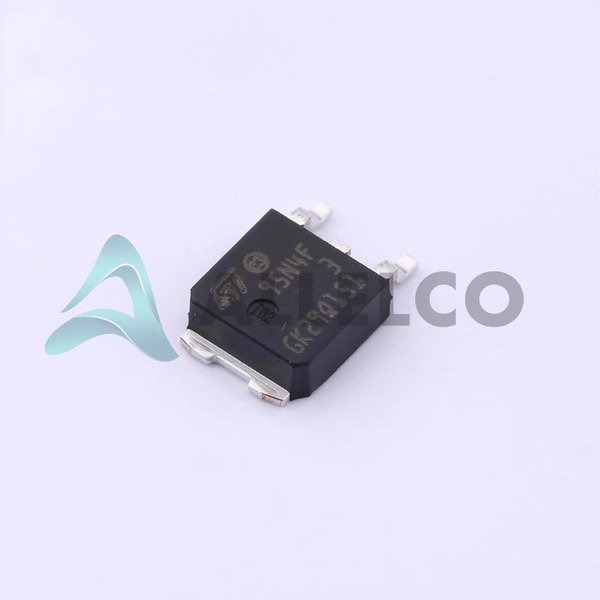

STD95N4F3
Manufacturer
STMicroelectronics
Introduction
High-performance N-Channel MOSFET
Product Features and Performance
Drain-Source Voltage (Vds) up to 40V
Low on-resistance (Rds(on)) of 6.5mΩ @ 40A, 10V
Continuous Drain Current (Id) of 80A at 25°C case temperature
Operating temperature range of -55°C to 175°C
Product Advantages
Excellent power handling capability
Efficient heat dissipation
Reliable and robust performance
Key Technical Parameters
Vds: 40V
Vgs (max): ±20V
Rds(on) (max): 6.5mΩ
Id (continuous): 80A
Ciss (max): 2200pF
Power Dissipation (max): 110W
Quality and Safety Features
RoHS3 compliant
DPAK package for efficient heat transfer
Compatibility
Suitable for a wide range of power electronics applications
Application Areas
Power supplies
Motor drives
Switching regulators
Inverters
Industrial and consumer electronics
Product Lifecycle
Currently available, no discontinuation planned. Upgrades and replacements may be available in the future.
Key Reasons to Choose This Product
Excellent power handling capability
Low on-resistance for high efficiency
Wide operating temperature range
Reliable and robust performance
Efficient heat dissipation in DPAK package
RoHS3 compliance for environmental sustainability
