HomeProductsDiscrete Semiconductor ProductsTransistors - IGBTs - SingleSTGW80V60DF

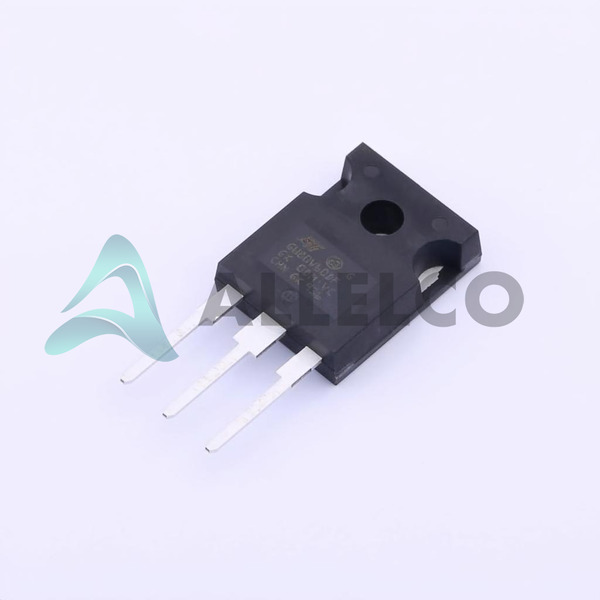

STGW80V60DF Image
STGW80V60DF Image - 1STGW80V60DF Image - 2
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

STGW80V60DF - STMicroelectronics

Manufacturer Part Number
STGW80V60DF
Manufacturer
STMicroelectronics
Allelco Part Number
32D-STGW80V60DF
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
IGBT 600V 120A 469W TO247
Package
TO-247
Data sheet
1.STGW80V60DF.pdf ...

Datasheets

STGW(T)80V60DF.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 6559
  • Unit Price: $3.264
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $3.264 $3.26
10+ $2.863 $28.63
30+ $2.619 $78.57
100+ $2.414 $241.40
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

STGW80V60DF Tech Specifications
STMicroelectronics - STGW80V60DF technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics - STGW80V60DF

Product Attribute Attribute Value
Manufacturer STMicroelectronics
Voltage - Collector Emitter Breakdown (Max) 600 V
Vce(on) (Max) @ Vge, Ic 2.3V @ 15V, 80A
Test Condition 400V, 80A, 5Ohm, 15V
Td (on/off) @ 25°C 60ns/220ns
Switching Energy 1.8mJ (on), 1mJ (off)
Supplier Device Package TO-247
Series -
Reverse Recovery Time (trr) 60 ns
Power - Max 469 W
Product Attribute Attribute Value
Package / Case TO-247-3 Exposed Pad
Package Tube
Operating Temperature -55°C ~ 175°C (TJ)
Mounting Type Through Hole
Input Type Standard
IGBT Type Trench Field Stop
Gate Charge 448 nC
Current - Collector Pulsed (Icm) 240 A
Current - Collector (Ic) (Max) 120 A
Base Product Number STGW80

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99

Parts Introduction

Manufacturer Part Number

STGW80V60DF

Manufacturer

STMicroelectronics

Introduction

High-performance trench IGBT in TO-247 package

Product Features and Performance

Trench field stop IGBT technology

600V IGBT with low Vce(on) and fast switching

120A continuous collector current

240A pulsed collector current

Low switching losses

Fast turn-on and turn-off times

Product Advantages

Optimized for high-efficiency and high-power applications

Excellent thermal and electrical characteristics

Reliable and robust design

Key Technical Parameters

Collector-Emitter Breakdown Voltage (Vceo): 600V

Collector Current (Ic): 120A continuous, 240A pulsed

Collector-Emitter Saturation Voltage (Vce(on)): 2.3V @ 15V, 80A

Reverse Recovery Time (trr): 60ns

Gate Charge (Qg): 448nC

Operating Temperature Range: -55°C to +175°C

Quality and Safety Features

RoHS3 compliant

TO-247 package with exposed pad for improved thermal management

Compatibility

Direct replacement for other 600V, 120A IGBTs in TO-247 package

Application Areas

High-power motor drives

Induction heating

Welding equipment

Switch-mode power supplies

Uninterruptible power supplies (UPS)

Product Lifecycle

Current production, no plans for discontinuation

Replacement products and upgrades available

Key Reasons to Choose This Product

High efficiency and power density

Fast switching and low losses

Reliable and robust design

Wide operating temperature range

Ease of integration due to standard package

Parts with Similar Specifications

The three parts on the right have similar specifications to STMicroelectronics STGW80V60DF

Product Attribute STGW60V60DLF STGW60V60DF STGW80V60F STGW80H65DFB-4
Part Number STGW60V60DLF STGW60V60DF STGW80V60F STGW80H65DFB-4
Manufacturer STMicroelectronics STMicroelectronics STMicroelectronics STMicroelectronics
Package - Tape & Reel (TR) Tube Tape & Reel (TR)
IGBT Type - - - -
Switching Energy - - - -
Test Condition - - - -
Current - Collector (Ic) (Max) - - - -
Supplier Device Package - 196-NFBGA (12x12) 16-PDIP 64-VQFN (9x9)
Package / Case - 196-LFBGA 16-DIP (0.300', 7.62mm) 64-VFQFN Exposed Pad
Reverse Recovery Time (trr) - - - -
Gate Charge - - - -
Operating Temperature - -40°C ~ 85°C 0°C ~ 70°C -40°C ~ 85°C
Current - Collector Pulsed (Icm) - - - -
Base Product Number - DAC34H84 MAX500 ADS62P42
Vce(on) (Max) @ Vge, Ic - - - -
Series - - - -
Td (on/off) @ 25°C - - - -
Mounting Type - Surface Mount Through Hole Surface Mount
Input Type - - - Differential
Voltage - Collector Emitter Breakdown (Max) - - - -
Power - Max - - - -
