Manufacturer Part Number

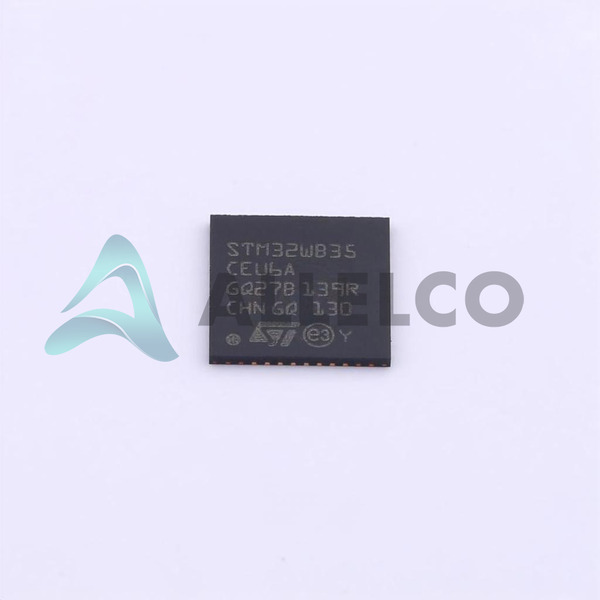

STM32WB35CEU6A
Manufacturer
STMicroelectronics
Introduction
The STM32WB35CEU6A is a highly integrated System-on-Chip (SoC) that combines an RF transceiver and a powerful Arm Cortex-M4 microcontroller. It is designed for low-power wireless applications operating in the 2.4 GHz frequency band.
Product Features and Performance
4 GHz RF transceiver with Bluetooth v5.3 and Zigbee support
Arm Cortex-M4 microcontroller with 512kB Flash and 256kB SRAM
Transmit power up to 6 dBm, receive sensitivity down to -100 dBm
Data rates up to 2 Mbps
Wide operating temperature range of -40°C to +105°C
Low power consumption in both transmit (4.5 mA to 12.7 mA) and receive (4.5 mA to 9.2 mA) modes
Product Advantages
Integrated RF transceiver and microcontroller reduce system complexity and cost
Extensive peripheral set including ADC, GPIO, I2C, SPI, UART, and more
Flexible power modes for optimized power consumption
Secure boot and secure firmware update capabilities for enhanced security
Key Technical Parameters
Operating Voltage: 1.71V to 3.6V
Package: 48-UFQFPN (7x7)
Mounting Type: Surface Mount
Quality and Safety Features
RoHS3 compliant
Automotive-grade packaging and quality control
Compatibility
Compatible with various wireless protocols like Bluetooth, Zigbee, and 802.15.4
Application Areas
Wireless IoT devices
Smart home and building automation
Industrial control and monitoring
Wearable electronics
Asset tracking and location-based services
Product Lifecycle
The STM32WB35CEU6A is an active product, and there are no plans for discontinuation in the near future.
Replacement or upgrade options may be available from the manufacturer as technology evolves.
Key Reasons to Choose This Product
Integrated RF transceiver and microcontroller for reduced system complexity and cost
Excellent power efficiency for battery-powered applications
Robust security features for secure wireless communication
Extensive peripheral set and flexible power modes for versatile design options
Wide operating temperature range suitable for diverse environmental conditions
Proven reliability and quality from a leading semiconductor manufacturer
