Manufacturer Part Number
STM6601BM2DDM6F
Manufacturer
stmicroelectronics
Introduction
The STM6601BM2DDM6F is a smart ON/OFF controller integrated circuit designed for advanced power management and system control operations.
Product Features and Performance
-Integrated Smart Reset™ functionality
-Supports single voltage monitoring
-Precisely set voltage threshold at 3.1V
-Output type: Open Drain or Open Collector for flexible interfacing
-Active Low reset signal
-Minimum reset timeout of 240ms ensures reliable system resets
-Designed for operation in harsh conditions with an operating temperature range of -40°C to 85°C
-Surface Mount technology for compact and efficient PCB design
-Packaged in a small 12-WFDFN footprint for space-sensitive applications
Product Advantages
-Enhanced system reliability through intelligent reset control
-Easy integration into existing designs thanks to its compact form factor and surface mount packaging
-Optimized for low power consumption, contributing to overall energy efficiency of the system
-Extended operational range accommodating a wide range of environmental conditions
Key Technical Parameters
-Voltage - Threshold: 3.1V
-Reset Timeout: 240ms Minimum
-Operating Temperature: -40°C ~ 85°C

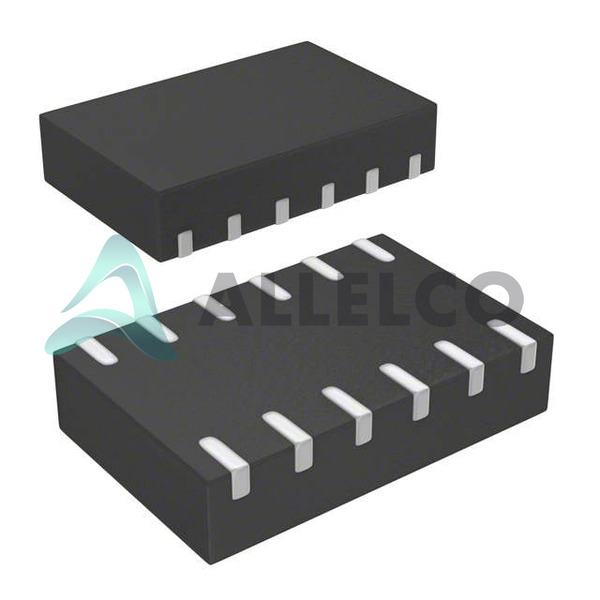

-Package / Case: 12-WFDFN
-Supplier Device Package: 12-TDFN (2x3)
Quality and Safety Features
-Built to meet high-quality standards with rigorous testing for reliability and performance under varying conditions
-Incorporates safety features to prevent system damage during faulty conditions
Compatibility
-Compatible with various microcontrollers and processors for flexible system design
-Supports a wide range of power supply configurations
Application Areas
-Suitable for use in consumer electronics, such as smartphones and tablets
-Automotive systems requiring reliable reset functionality
-Industrial controls and automation systems needing robust power management solutions
-Portable and battery-operated devices for enhanced power conservation
Product Lifecycle
-Currently Active status, ensuring product availability and support
-Not approaching discontinuation, with ongoing manufacturer support for new designs
Several Key Reasons to Choose This Product
-STM6601BM2DDM6F offers precise control over system power states, enhancing device reliability and user experience.
-Its low power consumption and compact size make it ideal for portable and space-constrained applications.
-The chip's wide operating temperature range allows for deployment in a variety of environments, from industrial to consumer applications.
-Stmicroelectronics' quality and safety commitment assures long-term reliability.
-The product's active status guarantees availability and support for future projects.
