Manufacturer Part Number
STM8S105K6U6
Manufacturer
STMicroelectronics
Introduction
The STM8S105K6U6 is an 8-bit microcontroller from the STM8S series designed for a wide range of applications.
Product Features and Performance
Core Processor: STM8
Core Size: 8-Bit
Speed: 16MHz
Connectivity: I2C, IrDA, LINbus, SPI, UART/USART
Peripherals: Brown-out Detect/Reset, Power-On Reset (POR), Pulse Width Modulation (PWM), Window Watchdog Timer (WDT)
Number of I/O: 25
Program Memory Size: 32KB (32K x 8)
Program Memory Type: FLASH
EEPROM Size: 1K x 8
RAM Size: 2K x 8
Data Converters: 7-channel 10-bit Analog-to-Digital Converter (A/D)
Product Advantages
Rich peripheral set for enhanced control operations
Robust design with brown-out detect and POR
Flexible power supply options from 2.95V to 5.5V
Internal oscillator reducing external component count
Good performance to power consumption ratio
Key Technical Parameters
Voltage - Supply (Vcc/Vdd): 2.95V ~ 5.5V
Oscillator Type: Internal
Operating Temperature: -40°C ~ 85°C (TA)
Mounting Type: Surface Mount

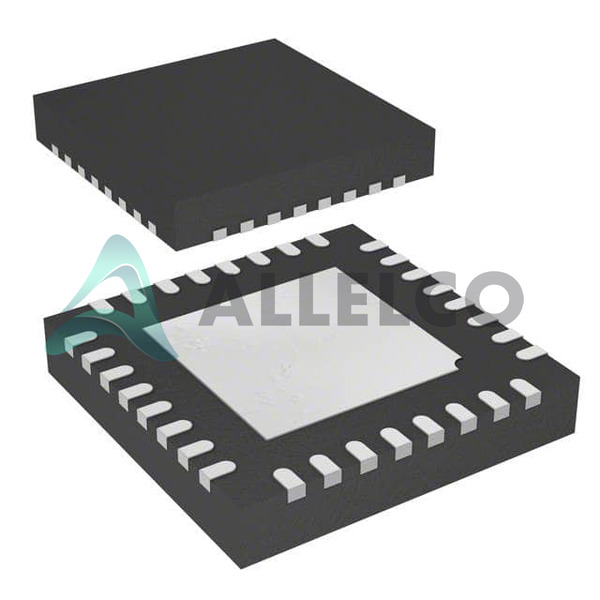

Package: 32-VFQFN Exposed Pad (5x5)
Quality and Safety Features
Extended temperature range for use in industrial environments
Watchdog timer for system reliability and failure protection
Brown-out detect for voltage dip monitoring
Compatibility
Compatible with a variety of communication protocols such as I2C, SPI, and UART
Easily integrates into many different system designs due to flexible voltage requirements and package types
Application Areas
Automotive systems
Industrial control systems
Consumer electronics
Building automation
Product Lifecycle
Product Status: Obsolete
Information regarding available replacements or upgrades may need to be sought from STMicroelectronics or authorized distributors.
Several Key Reasons to Choose This Product
Simplified development due to integrated features and peripherals
Suitable for varied applications due to extensive connectivity options
Support for a broad range of operating voltages enhancing design flexibility
Cost-effective solution for applications requiring 8-bit processing power
Availability of technical support and resources from STMicroelectronics despite its obsolescence status
