HomeProductsDiscrete Semiconductor ProductsTransistors - FETs, MOSFETs - SingleSTP5N60M2

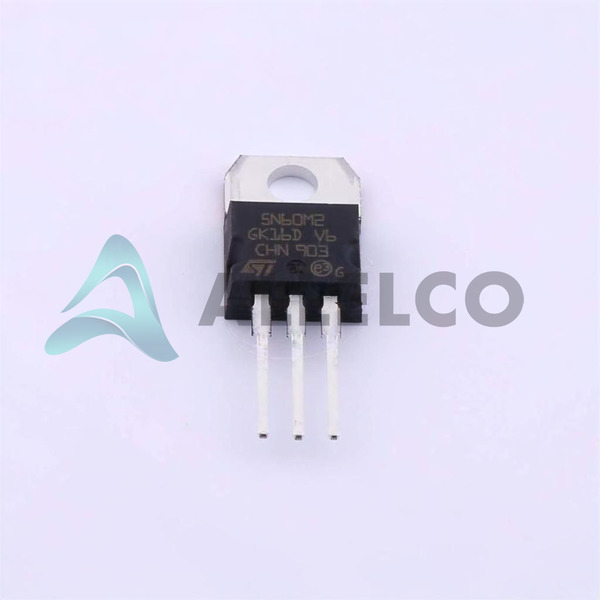

STP5N60M2 Image
STP5N60M2 Image - 1STP5N60M2 Image - 2
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

STP5N60M2 - STMicroelectronics

Manufacturer Part Number
STP5N60M2
Manufacturer
STMicroelectronics
Allelco Part Number
32D-STP5N60M2
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
MOSFET N-CH 600V 3.7A TO220
Package
TO-220
Data sheet
1.STP5N60M2.pdf ...

Datasheets

STx5N60M2.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 52290
  • Unit Price: $0.389
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $0.389 $0.39
10+ $0.381 $3.81
30+ $0.376 $11.28
100+ $0.371 $37.10
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

STP5N60M2 Tech Specifications
STMicroelectronics - STP5N60M2 technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics - STP5N60M2

Product Attribute Attribute Value
Manufacturer STMicroelectronics
Vgs(th) (Max) @ Id 4V @ 250µA
Vgs (Max) ±25V
Technology MOSFET (Metal Oxide)
Supplier Device Package TO-220
Series MDmesh™ II Plus
Rds On (Max) @ Id, Vgs 1.4Ohm @ 1.85A, 10V
Power Dissipation (Max) 45W (Tc)
Package / Case TO-220-3
Package Tube
Product Attribute Attribute Value
Operating Temperature 150°C (TJ)
Mounting Type Through Hole
Input Capacitance (Ciss) (Max) @ Vds 165 pF @ 100 V
Gate Charge (Qg) (Max) @ Vgs 4.5 nC @ 10 V
FET Type N-Channel
FET Feature -
Drive Voltage (Max Rds On, Min Rds On) 10V
Drain to Source Voltage (Vdss) 600 V
Current - Continuous Drain (Id) @ 25°C 3.7A (Tc)
Base Product Number STP5N60

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99

Parts Introduction

Manufacturer Part Number

STP5N60M2

Manufacturer

STMicroelectronics

Introduction

High-performance N-channel power MOSFET

Part of the MDmesh II Plus series

Product Features and Performance

High voltage rating of 600V

Low on-resistance of 1.4Ω

Continuous drain current of 3.7A

Wide operating temperature range up to 150°C

Low gate charge of 4.5nC

Fast switching speed

Product Advantages

Excellent power density and efficiency

Reliable and robust design

Suitable for high-voltage, high-power applications

Key Technical Parameters

Drain to Source Voltage (Vdss): 600V

Gate to Source Voltage (Vgs): ±25V

On-Resistance (Rds(on)): 1.4Ω

Continuous Drain Current (Id): 3.7A

Input Capacitance (Ciss): 165pF

Power Dissipation: 45W

Quality and Safety Features

RoHS3 compliant

TO-220 package for reliable mounting and thermal management

Compatibility

Suitable for a wide range of high-voltage, high-power applications

Application Areas

Switching power supplies

Motor drives

Industrial automation

Renewable energy systems

Product Lifecycle

This product is currently in production and available

Replacement or upgrade options may be available in the future

Key Reasons to Choose This Product

Excellent power handling and efficiency

Reliable and robust design

Wide operating temperature range

Fast switching speed for improved system performance

RoHS3 compliance for environmental responsibility

Parts with Similar Specifications

The three parts on the right have similar specifications to STMicroelectronics STP5N60M2
