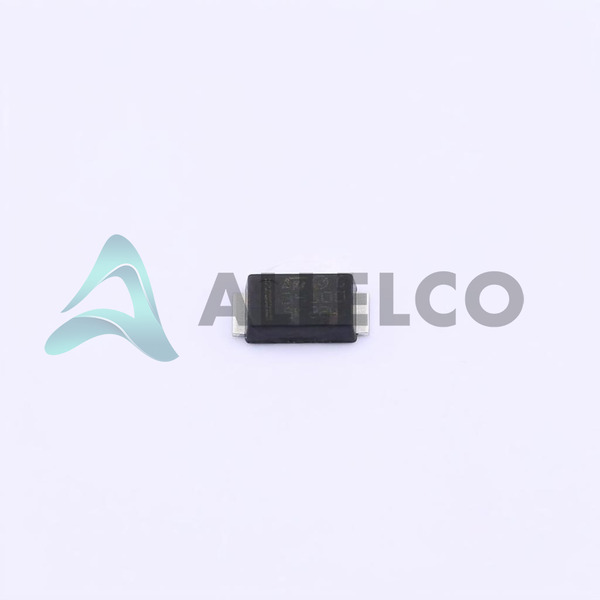

Manufacturer Part Number
STPS3H100AF
Manufacturer
STMicroelectronics
Introduction
High-performance Schottky rectifier diode in a miniature surface-mount package
Product Features and Performance
Fast reverse recovery time of ≤ 500 ns
High current capability of up to 3 A average rectified current
Low forward voltage drop of 760 mV at 3 A
Product Advantages
Compact surface-mount package
High efficiency
Reliable and durable performance
Key Technical Parameters
Voltage DC Reverse (Vr) (Max): 100 V
Current Average Rectified (Io): 3 A
Speed: Fast Recovery ≤ 500 ns, > 200 mA (Io)
Operating Temperature Junction: -40°C to 175°C
Quality and Safety Features
RoHS3 compliant
Designed and manufactured to high quality standards
Compatibility
Suitable for a wide range of power supply, switch-mode power supply, and general rectification applications
Application Areas
Ideal for use in power supplies, power converters, and other power electronics applications
Product Lifecycle
Currently in active production
Replacements and upgrades may be available in the future as technology advances
Key Reasons to Choose This Product
High current capability and fast reverse recovery time for efficient power conversion
Compact surface-mount package for space-constrained designs
Reliable and durable performance over a wide temperature range
Compliance with RoHS regulations for environmentally friendly applications
