Manufacturer Part Number

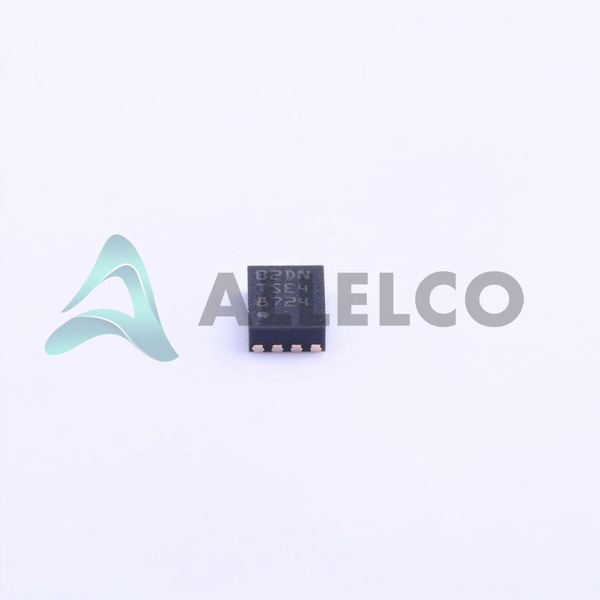

STTS2004B2DN3F
Manufacturer
stmicroelectronics
Introduction
The STTS2004B2DN3F is a sophisticated temperature monitoring system specifically designed for DIMM DDR memory applications. It uses an internal sensor to ensure optimal thermal management in power management integrated circuits.
Product Features and Performance
Internal temperature sensor
Wide sensing temperature range from -20°C to 125°C
High accuracy with a maximum deviation of ±3°C
Integrated ADC (Sigma Delta) and Register Bank topology
Provides 2-Wire Serial and I2C output
Includes an output alarm feature
Does not support output fan control
Operates over a 2.2V to 3.6V supply voltage
Product Advantages
High precision temperature monitoring enhances system stability
Wide operating temperature range suited for harsh environments
Low voltage operation facilitates energy efficiency
Key Technical Parameters
Sensing Temperature: -20°C ~ 125°C
Accuracy: ±3°C (Max)
Voltage Supply: 2.2V ~ 3.6V
Output Type: 2-Wire Serial, I2C
Quality and Safety Features
Ensures real-time temperature accuracy and system stability
Robust design suitable for challenging operating conditions
Compatibility
Specifically designed for DIMM DDR Memory applications
Application Areas
Thermal Management in Power Management ICs for computing systems
Industrial electronic systems requiring precise thermal management
Product Lifecycle
Current status: Active
No mentioned discontinuation, ensuring availability for ongoing and future projects
Several Key Reasons to Choose This Product
Precision thermal monitoring prevents system overheating
Wide temperature range and high accuracy ensure suitability for diverse operating conditions
Low power consumption helps in maintaining system efficiency
Integrated alarm feature for immediate overheating alerts
