HomeProductsIntegrated Circuits (ICs)PMIC - Voltage ReferenceTL1431ACZT

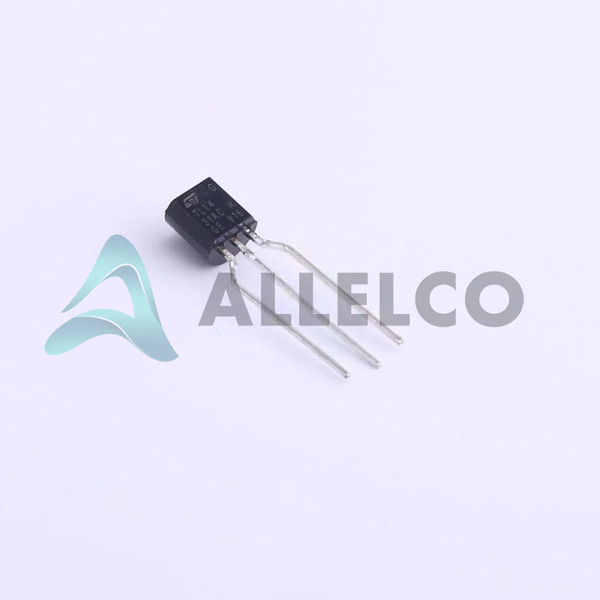

TL1431ACZT Image
TL1431ACZT Image - 1TL1431ACZT Image - 2
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

TL1431ACZT - STMicroelectronics

Manufacturer Part Number
TL1431ACZT
Manufacturer
STMicroelectronics
Allelco Part Number
32D-TL1431ACZT
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
IC VREF SHUNT ADJ 0.25% TO92-3
Package
TO-92-3
Data sheet
1.TL1431ACZT.pdf ...

HTML Datasheet

TL1431.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 154580
  • Unit Price: $0.719
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $0.719 $0.72
10+ $0.614 $6.14
30+ $0.555 $16.65
100+ $0.469 $46.90
500+ $0.44 $220.00
1000+ $0.426 $426.00
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

TL1431ACZT Tech Specifications
STMicroelectronics - TL1431ACZT technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics - TL1431ACZT

Product Attribute Attribute Value
Manufacturer STMicroelectronics
Voltage - Output (Min/Fixed) 2.5V
Voltage - Output (Max) 36 V
Voltage - Input -
Tolerance ±0.25%
Temperature Coefficient 90ppm/°C
Supplier Device Package TO-92-3
Series -
Reference Type Shunt
Package / Case TO-226-2, TO-92-2 (TO-226AC)
Product Attribute Attribute Value
Package Tape & Reel (TR)
Output Type Adjustable
Operating Temperature -20°C ~ 70°C (TA)
Noise - 10Hz to 10kHz -
Noise - 0.1Hz to 10Hz -
Mounting Type Through Hole
Current - Supply -
Current - Output 100 mA
Current - Cathode 600 µA
Base Product Number TL1431

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001

Parts Introduction

Manufacturer Part Number

TL1431ACZT

Manufacturer

STMicroelectronics

Introduction

The TL1431ACZT is a programmable precision shunt voltage reference.

Product Features and Performance

Programmable output voltage from 2.5V to 36V

Output current capability of 100 mA

High stability with a tolerance of ±0.25%

Low temperature coefficient at 90ppm/°C

Designed for through-hole mounting

Flexible adjustments for a variety of applications

Product Advantages

Accurate voltage regulation

Low dynamic output impedance for better stability

Suitable for use in various power supply configurations

Robust thermal performance

Key Technical Parameters

Minimum Output Voltage: 2.5V

Maximum Output Voltage: 36V

Current - Output: 100 mA

Tolerance: ±0.25%

Temperature Coefficient: 90ppm/°C

Current - Cathode: 600 µA

Operating Temperature Range: -20°C to 70°C

Quality and Safety Features

Highly accurate and stable voltage reference ensures reliable operation

Built-in thermal protection to safeguard against overheating

Compatibility

Through-hole package compatible with standard PCB designs

Meets requirements for various power management applications

Application Areas

Power supplies

Precision voltage regulation

A/D converters

Battery chargers

Consumer electronics

Product Lifecycle

Product Status: Active

The TL1431ACZT is not nearing discontinuation and replacements or upgrades are available if required

Several Key Reasons to Choose This Product

Highly precise voltage regulation suitable for demanding applications

Wide output voltage range catering to diverse design requirements

Proven reliability and performance from STMicroelectronics

Optimal for designs requiring extended temperature range operation

Easily integrated into existing designs due to standard package

Supportive of legacy and new applications with its versatile specifications

Parts with Similar Specifications

The three parts on the right have similar specifications to STMicroelectronics TL1431ACZT

Product Attribute TL1431ACL5T TL1431ACDT TL1431ACCT TL1431AIZT
Part Number TL1431ACL5T TL1431ACDT TL1431ACCT TL1431AIZT
Manufacturer STMicroelectronics STMicroelectronics STMicroelectronics STMicroelectronics
Mounting Type - Surface Mount Through Hole Surface Mount
Voltage - Output (Min/Fixed) - - - -
Noise - 0.1Hz to 10Hz - - - -
Supplier Device Package - 196-NFBGA (12x12) 16-PDIP 64-VQFN (9x9)
Voltage - Output (Max) - - - -
Output Type - Current - Unbuffered Voltage - Buffered -
Noise - 10Hz to 10kHz - - - -
Tolerance - - - -
Package / Case - 196-LFBGA 16-DIP (0.300', 7.62mm) 64-VFQFN Exposed Pad
Operating Temperature - -40°C ~ 85°C 0°C ~ 70°C -40°C ~ 85°C
Temperature Coefficient - - - -
Current - Supply - - - -
Current - Cathode - - - -
Base Product Number - DAC34H84 MAX500 ADS62P42
Voltage - Input - - - -
Reference Type - External, Internal External External, Internal
Package - Tape & Reel (TR) Tube Tape & Reel (TR)
Current - Output - - - -
Series - - - -

TL1431ACZT Datasheet PDF

Download TL1431ACZT pdf datasheets and STMicroelectronics documentation for TL1431ACZT - STMicroelectronics.

PCN Design/Specification
IPG-IPC/14/8713 02/Oct/2014.pdf Mult Dev Adv Material Notice 8/Apr/2019.pdf
PCN Assembly/Origin
Mult Dev Mold Comp Chg 6/Jul/2019.pdf
HTML Datasheet
TL1431.pdf
