Specifications

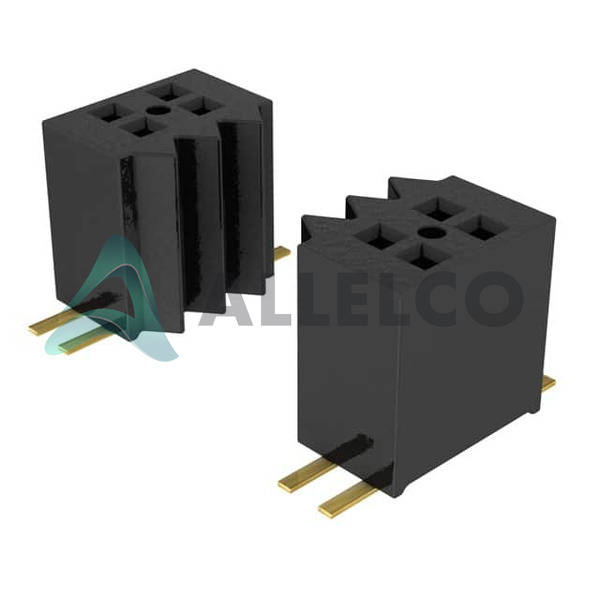

CLE-111-01-G-DV-P Tech Specifications
Samtec Inc. - CLE-111-01-G-DV-P technical specifications, attributes, parameters and parts with similar specifications to Samtec Inc. - CLE-111-01-G-DV-P
| Product Attribute |
Attribute Value
| |
| Manufacturer |
Samtec, Inc. |
|
| Voltage Rating |
- |
|
| Termination |
Solder |
|
| Style |
Board to Board |
|
| Series |
CLE |
|
| Row Spacing - Mating |
0.047' (1.20mm) |
|
| Pitch - Mating |
0.031' (0.80mm) |
|
| Package |
Tube |
|
| Operating Temperature |
-55°C ~ 125°C |
|
| Number of Rows |
2 |
|
| Number of Positions Loaded |
All |
|
| Number of Positions |
22 |
|
| Mounting Type |
Surface Mount |
|
| Material Flammability Rating |
UL94 V-0 |
|
| Mated Stacking Heights |
- |
|
| Insulation Material |
Liquid Crystal Polymer (LCP) |
|
| Insulation Height |
0.130' (3.30mm) |
|
| Product Attribute |
Attribute Value
| |
| Insulation Color |
Black |
|
| Ingress Protection |
- |
|
| Features |
Pick and Place |
|
| Fastening Type |
Push-Pull |
|
| Current Rating (Amps) |
2.7A per Contact |
|
| Contact Type |
Female Socket |
|
| Contact Shape |
Square |
|
| Contact Material |
Beryllium Copper |
|
| Contact Length - Post |
- |
|
| Contact Finish Thickness - Post |
10.0µin (0.25µm) |
|
| Contact Finish Thickness - Mating |
10.0µin (0.25µm) |
|
| Contact Finish - Post |
Gold |
|
| Contact Finish - Mating |
Gold |
|
| Connector Type |
Receptacle, Pass Through |
|
| Base Product Number |
CLE-111 |
|
| Applications |
- |
|
