Specifications

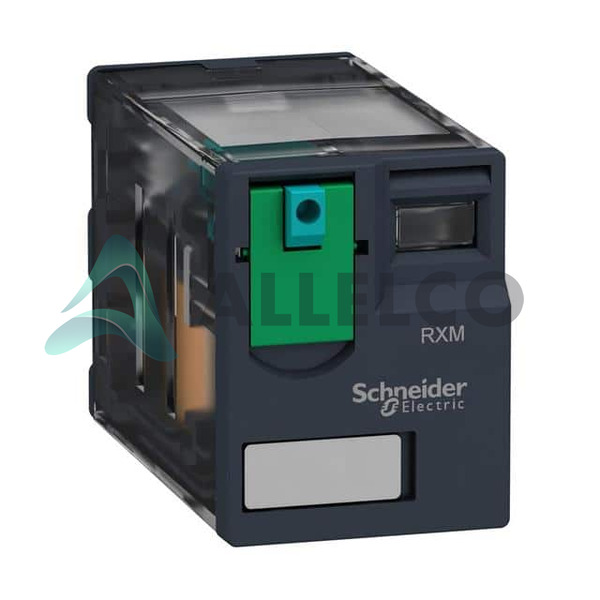

RXM2AB1JD Tech Specifications
Schneider Electric - RXM2AB1JD technical specifications, attributes, parameters and parts with similar specifications to Schneider Electric - RXM2AB1JD
| Product Attribute |
Attribute Value
| |
| Manufacturer |
Schneider Electric |
|
| Termination Style |
Plug In |
|
| Switching Voltage |
250VAC, 28VDC - Max |
|
| Series |
Harmony |
|
| Seal Rating |
- |
|
| Release Time |
20 ms |
|
| Relay Type |
General Purpose |
|
| Package |
Box |
|
| Operating Temperature |
-40°C ~ 55°C |
|
| Operate Time |
20 ms |
|
| Must Release Voltage |
1.2 VDC |
|
| Product Attribute |
Attribute Value
| |
| Must Operate Voltage |
9.6 VDC |
|
| Mounting Type |
Socketable |
|
| Features |
Test Button |
|
| Contact Rating (Current) |
12 A |
|
| Contact Material |
Silver Nickel (AgNi) |
|
| Contact Form |
DPDT (2 Form C) |
|
| Coil Voltage |
12VDC |
|
| Coil Type |
Non Latching |
|
| Coil Resistance |
160 Ohms |
|
| Coil Insulation |
- |
|
| Coil Current |
75 mA |
|
