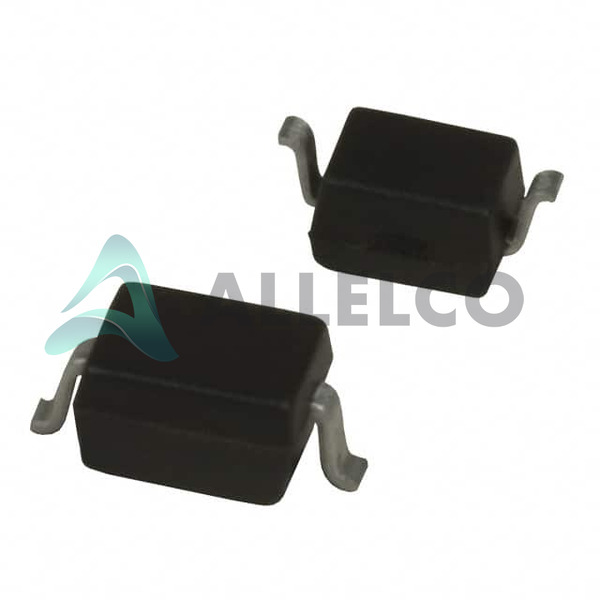

SD05C.TCT Image
SD05C.TCT Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

SD05C.TCT - Semtech Corporation

Manufacturer Part Number
SD05C.TCT
Manufacturer
Semtech
Allelco Part Number
32D-SD05C.TCT
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
TVS DIODE 5VWM 14.5VC SOD323
Package
SOD-323
Data sheet
1.SD05C.TCT.pdf ...

HTML Datasheet

SD05C-SD24C.pdf

PCN Packaging

2.73KHz.pdf
RoHs Status
RoHS Compliant
Compare
Our certification
In stock: 81630
  • Unit Price: $0.342
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $0.342 $0.34
10+ $0.284 $2.84
30+ $0.255 $7.65
100+ $0.227 $22.70
500+ $0.182 $91.00
1000+ $0.174 $174.00
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

SD05C.TCT Tech Specifications
Semtech Corporation - SD05C.TCT technical specifications, attributes, parameters and parts with similar specifications to Semtech Corporation - SD05C.TCT

Product Attribute Attribute Value
Manufacturer Semtech
Voltage - Reverse Standoff (Typ) 5V (Max)
Voltage - Clamping (Max) @ Ipp 14.5V
Voltage - Breakdown (Min) 6V
Type Zener
Supplier Device Package SOD-323
Series -
Power Line Protection No
Power - Peak Pulse 350W
Product Attribute Attribute Value
Package / Case SC-76, SOD-323
Package Tape & Reel (TR)
Operating Temperature -55°C ~ 125°C (TJ)
Mounting Type Surface Mount
Current - Peak Pulse (10/1000µs) 24A (8/20µs)
Capacitance @ Frequency 200pF @ 1MHz
Bidirectional Channels 1
Base Product Number SD05
Applications General Purpose

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status RoHS Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080

Parts Introduction

Manufacturer Part Number

SD05C.TCT

Manufacturer

Semtech

Introduction

The SD05C.TCT is a high-performance bidirectional transient voltage suppressor (TVS) diode designed for general-purpose applications. This device offers robust protection against electrostatic discharge (ESD) and other transient voltage spikes, ensuring the reliability and longevity of sensitive electronic components.

Product Features and Performance

Bidirectional 1-channel protection

Reverse standoff voltage (typical): 5V (max)

Breakdown voltage (minimum): 6V

Clamping voltage (max) at Ipp: 14.5V

Peak pulse current (10/1000μs): 24A (8/20μs)

Peak pulse power: 350W

Capacitance @ 1MHz: 200pF

Operating temperature range: -55°C to 125°C (TJ)

Surface mount package: SC-76, SOD-323

Product Advantages

Robust protection against ESD and transient voltage spikes

Compact surface mount package for efficient board space utilization

Wide operating temperature range for versatile applications

Low capacitance for minimal impact on high-speed signal integrity

Key Reasons to Choose This Product

Reliable and long-lasting protection for sensitive electronic components

Optimized performance and small footprint for space-constrained designs

Suitable for a wide range of general-purpose applications

Proven Semtech quality and safety standards

Quality and Safety Features

Compliant with relevant safety and environmental regulations

Rigorous testing and quality control measures to ensure reliability

Compatibility

Suitable for a variety of electronic devices and systems that require transient voltage protection

Application Areas

General-purpose electronics

Industrial and automation equipment

Consumer electronics

Communications and networking devices

Product Lifecycle

The SD05C.TCT is an active product, and our website's sales team continues to manufacture and support this model. There are several equivalent or alternative models available from our website's sales team, including the SD05B.TCT and SD05D.TCT, which offer similar features and characteristics. If you require more information or have specific questions, please contact our website's sales team.
