HomeProductsDiscrete Semiconductor ProductsDiodes - Rectifiers - SingleFR305G

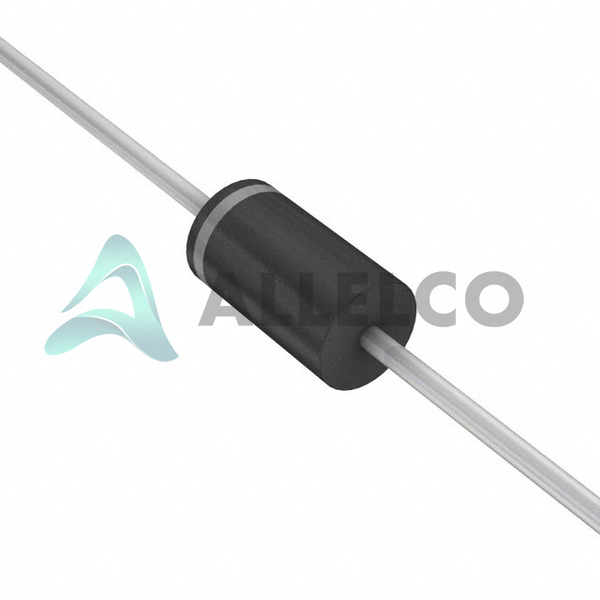

FR305G Image
FR305G Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

FR305G - SMC Diode Solutions

Manufacturer Part Number
FR305G
Manufacturer
Sangdest Microelectronics / Nanjing (SMC Diode Solutions)
Allelco Part Number
32D-FR305G
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
DIODE GEN PURP 600V 3A DO201AD
Package
DO-201AD
Data sheet
1.FR305G.pdf ...

Datasheets

FR301G - FR307G.pdf

Environmental Information

SMC Diodes REACH 205.pdf SMC Diodes RoHS.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 653250

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity
EXPRESS OPTION
Payment method
Our certification

Specifications

FR305G Tech Specifications
SMC Diode Solutions - FR305G technical specifications, attributes, parameters and parts with similar specifications to SMC Diode Solutions - FR305G

Product Attribute Attribute Value
Manufacturer Sangdest Microelectronics / Nanjing (SMC Diode Solutions)
Voltage - Forward (Vf) (Max) @ If 1.3 V @ 3 A
Voltage - DC Reverse (Vr) (Max) 600 V
Technology Standard
Supplier Device Package DO-201AD
Speed Fast Recovery =< 500ns, > 200mA (Io)
Series -
Reverse Recovery Time (trr) 250 ns
Product Attribute Attribute Value
Package / Case DO-201AD, Axial
Package Tape & Box (TB)
Operating Temperature - Junction -65°C ~ 150°C
Mounting Type Through Hole
Current - Reverse Leakage @ Vr 5 µA @ 420 V
Current - Average Rectified (Io) 3A
Capacitance @ Vr, F 60pF @ 4V, 1MHz
Base Product Number FR30

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99

Parts with Similar Specifications

The three parts on the right have similar specifications to SMC Diode Solutions FR305G

Product Attribute FR305GTA FR305G B0G FR305G FR305GP-TP
Part Number FR305GTA FR305G B0G FR305G FR305GP-TP
Manufacturer Sensitron Semiconductor / SMC Diode Solutions Taiwan Semiconductor Corporation Taiwan Semiconductor Corporation Micro Commercial Co
Supplier Device Package - 196-NFBGA (12x12) 16-PDIP 64-VQFN (9x9)
Technology - - - -
Current - Reverse Leakage @ Vr - - - -
Operating Temperature - Junction - - - -
Capacitance @ Vr, F - - - -
Voltage - DC Reverse (Vr) (Max) - - - -
Current - Average Rectified (Io) - - - -
Package - Tape & Reel (TR) Tube Tape & Reel (TR)
Reverse Recovery Time (trr) - - - -
Mounting Type - Surface Mount Through Hole Surface Mount
Base Product Number - DAC34H84 MAX500 ADS62P42
Package / Case - 196-LFBGA 16-DIP (0.300', 7.62mm) 64-VFQFN Exposed Pad
Series - - - -
Speed - - - -
Voltage - Forward (Vf) (Max) @ If - - - -

FR305G Datasheet PDF

Download FR305G pdf datasheets and SMC Diode Solutions documentation for FR305G - SMC Diode Solutions.

Datasheets
FR301G - FR307G.pdf
Environmental Information
SMC Diodes REACH 205.pdf SMC Diodes RoHS.pdf
