Specifications

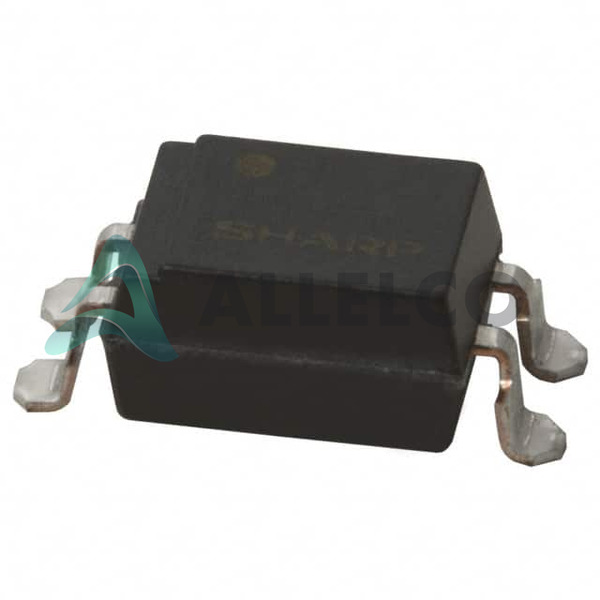

PC81713NIP Tech Specifications
Sharp Microelectronics - PC81713NIP technical specifications, attributes, parameters and parts with similar specifications to Sharp Microelectronics - PC81713NIP
| Product Attribute |
Attribute Value
| |
| Manufacturer |
Sharp Microelectronics |
|
| Voltage - Output (Max) |
80V |
|
| Voltage - Isolation |
5000Vrms |
|
| Voltage - Forward (Vf) (Typ) |
1.2V |
|
| Vce Saturation (Max) |
200mV |
|
| Turn On / Turn Off Time (Typ) |
- |
|
| Supplier Device Package |
4-SMD |
|
| Series |
- |
|
| Rise / Fall Time (Typ) |
4µs, 3µs |
|
| Package / Case |
4-SMD, Gull Wing |
|
| Product Attribute |
Attribute Value
| |
| Package |
Tape & Reel (TR) |
|
| Output Type |
Transistor |
|
| Operating Temperature |
-30°C ~ 100°C |
|
| Number of Channels |
1 |
|
| Mounting Type |
Surface Mount |
|
| Input Type |
DC |
|
| Current Transfer Ratio (Min) |
200% @ 500µA |
|
| Current Transfer Ratio (Max) |
500% @ 500µA |
|
| Current - Output / Channel |
50mA |
|
| Current - DC Forward (If) (Max) |
10 mA |
|
