Manufacturer Part Number

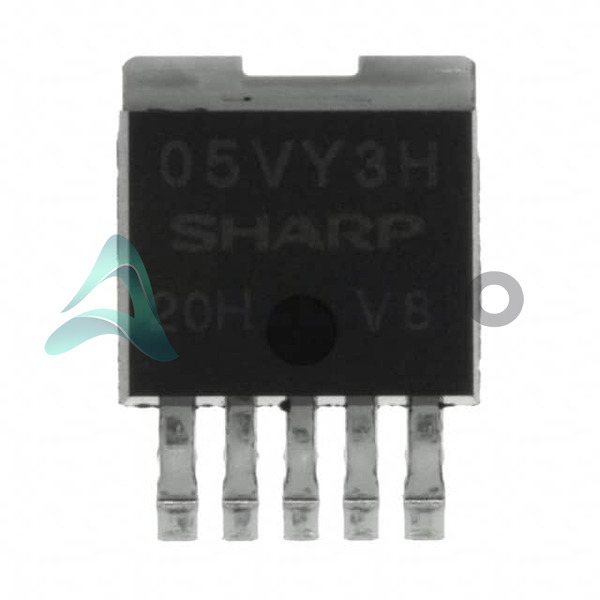

PQ05VY3H3ZPH
Manufacturer
sharp-microelectronics
Introduction
This product is a high-performance linear voltage regulator that provides a stable and adjustable output voltage. It is designed for use in a wide range of power management applications, offering excellent regulation, low noise, and high efficiency. With its adjustable output voltage and robust protection features, it is a versatile and reliable solution for various electronic systems.
Product Features and Performance
Adjustable output voltage range: 1.5V to 5V
Maximum output current: 3.5A
Low voltage dropout: 0.5V @ 3.5A
High power supply rejection ratio (PSRR): 70dB (120Hz)
Low quiescent current: 10mA
Integrated enable control and protection features, including over-current and over-temperature protection
Wide operating temperature range: -20°C to 80°C
Surface mount package: TO-263-6, D2PAK (5 Leads + Tab), TO-263BA
Product Advantages
Excellent regulation and low noise for sensitive analog and digital applications
Robust protection features ensure reliable and safe operation
Compact surface mount package for efficient use of board space
Versatile adjustable output voltage range for wide application flexibility
Key Reasons to Choose This Product
High-performance and reliable voltage regulation
Efficient power management with low power consumption
Comprehensive protection features for enhanced system reliability
Versatile design suitable for a wide range of applications
Quality and Safety Features
Integrated over-current and over-temperature protection
Designed and manufactured to meet high-quality standards
Compatibility
This product is compatible with a wide range of electronic systems and applications that require a stable and adjustable voltage supply.
Application Areas
Consumer electronics
Industrial equipment
Telecommunications systems
Automotive electronics
Medical devices
Product Lifecycle
The PQ05VY3H3ZPH is an obsolete product, meaning it is no longer in production. However, there may be equivalent or alternative models available from sharp-microelectronics or other manufacturers. Customers are advised to contact our website's sales team for more information on potential replacement options.
