Specifications

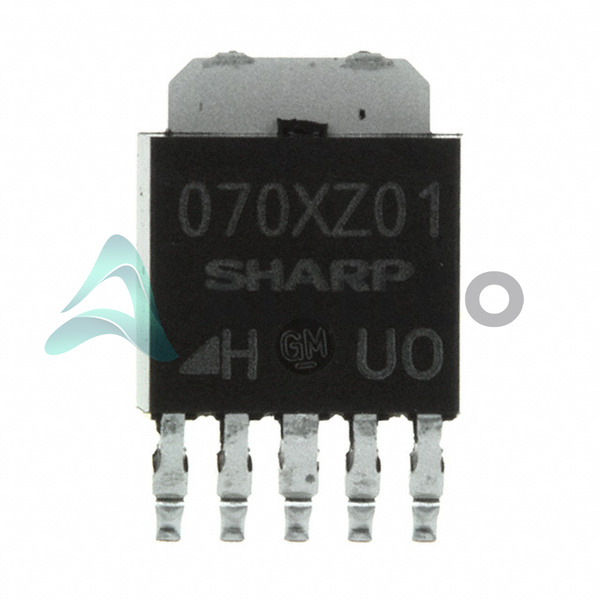

PQ070XZ01ZPH Tech Specifications
Sharp Microelectronics - PQ070XZ01ZPH technical specifications, attributes, parameters and parts with similar specifications to Sharp Microelectronics - PQ070XZ01ZPH
| Product Attribute |
Attribute Value
| |
| Manufacturer |
Sharp Microelectronics |
|
| Voltage Dropout (Max) |
0.5V @ 500mA |
|
| Voltage - Output (Min/Fixed) |
1.5V |
|
| Voltage - Output (Max) |
7V |
|
| Voltage - Input (Max) |
10V |
|
| Supplier Device Package |
SC-63 |
|
| Series |
- |
|
| Protection Features |
Over Current, Over Temperature |
|
| Packaging |
Tape & Reel (TR) |
|
| Package / Case |
TO-252-6, DPak (5 Leads + Tab) |
|
| PSRR |
60dB (120Hz) |
|
| Output Type |
Adjustable |
|
| Product Attribute |
Attribute Value
| |
| Output Configuration |
Positive |
|
| Other Names |
425-2635-2 |
|
| Operating Temperature |
-40°C ~ 85°C |
|
| Number of Regulators |
1 |
|
| Mounting Type |
Surface Mount |
|
| Moisture Sensitivity Level (MSL) |
1 (Unlimited) |
|
| Lead Free Status / RoHS Status |
Lead free / RoHS Compliant |
|
| Detailed Description |
Linear Voltage Regulator IC Positive Adjustable 1 Output 1.5 V ~ 7 V 1A SC-63 |
|
| Current - Quiescent (Iq) |
2mA |
|
| Current - Output |
1A |
|
| Control Features |
Enable |
|
