Specifications

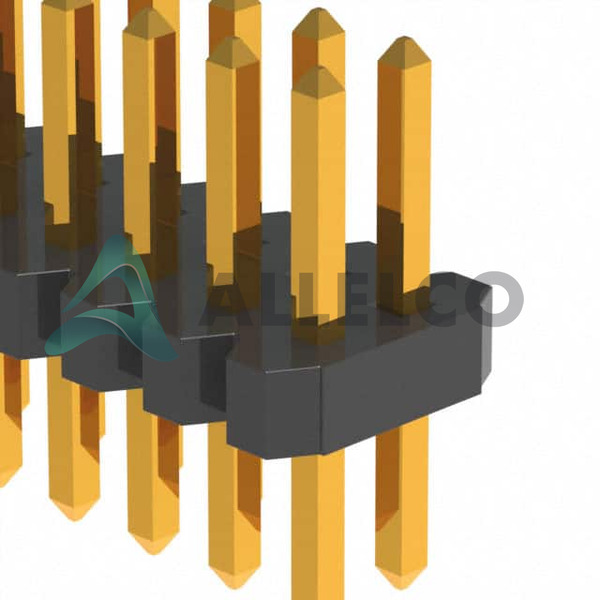

GRPB252VWVN-RC Tech Specifications
Sullins Connector Solutions - GRPB252VWVN-RC technical specifications, attributes, parameters and parts with similar specifications to Sullins Connector Solutions - GRPB252VWVN-RC
| Product Attribute |
Attribute Value
| |
| Manufacturer |
Sullins Connector Solutions |
|
| Voltage Rating |
- |
|
| Termination |
Solder |
|
| Style |
Board to Board or Cable |
|
| Shrouding |
Unshrouded |
|
| Series |
- |
|
| Row Spacing - Mating |
0.050" (1.27mm) |
|
| Pitch - Mating |
0.050" (1.27mm) |
|
| Package |
Bulk |
|
| Overall Contact Length |
0.248" (6.30mm) |
|
| Operating Temperature |
-40°C ~ 105°C |
|
| Number of Rows |
2 |
|
| Number of Positions Loaded |
All |
|
| Number of Positions |
50 |
|
| Mounting Type |
Through Hole |
|
| Material Flammability Rating |
UL94 V-0 |
|
| Mated Stacking Heights |
- |
|
| Insulation Material |
Polyamide (PA9T), Nylon 9T |
|
| Product Attribute |
Attribute Value
| |
| Insulation Height |
0.039" (1.00mm) |
|
| Insulation Color |
- |
|
| Ingress Protection |
- |
|
| Features |
- |
|
| Fastening Type |
Push-Pull |
|
| Current Rating (Amps) |
1A |
|
| Contact Type |
Male Pin |
|
| Contact Shape |
Square |
|
| Contact Material |
Brass |
|
| Contact Length - Post |
0.091" (2.30mm) |
|
| Contact Length - Mating |
0.118" (3.00mm) |
|
| Contact Finish Thickness - Post |
Flash |
|
| Contact Finish Thickness - Mating |
Flash |
|
| Contact Finish - Post |
Gold |
|
| Contact Finish - Mating |
Gold |
|
| Connector Type |
Header |
|
| Base Product Number |
GRPB252 |
|
| Applications |
- |
|
