HomeProductsConnectors, InterconnectsRectangular Connectors - Headers, Male PinsPEC30DGAN

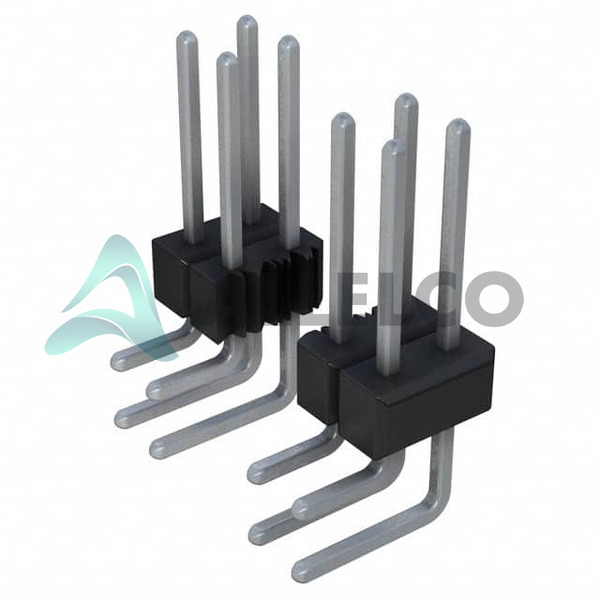

PEC30DGAN Image
PEC30DGAN Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

PEC30DGAN - Sullins Connector Solutions

Manufacturer Part Number
PEC30DGAN
Manufacturer
Sullins Connector Solutions
Allelco Part Number
98D-PEC30DGAN
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
CONN HEADER R/A 60POS 2.54MM
Package
Bulk
Data sheet
1.PEC30DGAN.pdf ...

Environmental Information

Sullins Connector Solutions REACH.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 36954

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity
EXPRESS OPTION
Payment method
Our certification

Specifications

PEC30DGAN Tech Specifications
Sullins Connector Solutions - PEC30DGAN technical specifications, attributes, parameters and parts with similar specifications to Sullins Connector Solutions - PEC30DGAN

Product Attribute Attribute Value
Manufacturer Sullins Connector Solutions
Voltage Rating -
Termination Solder
Style Board to Board or Cable
Shrouding Unshrouded
Series -
Row Spacing - Mating 0.100" (2.54mm)
Pitch - Mating 0.100" (2.54mm)
Package Bulk
Overall Contact Length -
Operating Temperature -65°C ~ 125°C
Number of Rows 2
Number of Positions Loaded All
Number of Positions 60
Mounting Type Through Hole, Right Angle
Material Flammability Rating UL94 V-0
Mated Stacking Heights -
Insulation Material Polybutylene Terephthalate (PBT)
Product Attribute Attribute Value
Insulation Height 0.240" (6.10mm)
Insulation Color Black
Ingress Protection -
Features -
Fastening Type Push-Pull
Current Rating (Amps) 3A
Contact Type Male Pin
Contact Shape Square
Contact Material Phosphor Bronze
Contact Length - Post 0.100" (2.54mm)
Contact Length - Mating 0.318" (8.08mm)
Contact Finish Thickness - Post 100.0µin (2.54µm)
Contact Finish Thickness - Mating 100.0µin (2.54µm)
Contact Finish - Post Tin
Contact Finish - Mating Tin
Connector Type Header, Breakaway
Base Product Number PEC30
Applications -

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040

Parts with Similar Specifications

The three parts on the right have similar specifications to Sullins Connector Solutions PEC30DGAN

Product Attribute PEC30DGBN PEC30DFAN PEC30SAEN PEC30DFCN
Part Number PEC30DGBN PEC30DFAN PEC30SAEN PEC30DFCN
Manufacturer Sullins Connector Solutions Sullins Connector Solutions Sullins Connector Solutions Sullins Connector Solutions
Termination - - - -
Voltage Rating - - - -
Applications - - - -
Insulation Color - - - -
Number of Positions Loaded - - - -
Insulation Height - - - -
Mated Stacking Heights - - - -
Row Spacing - Mating - - - -
Operating Temperature - -40°C ~ 85°C 0°C ~ 70°C -40°C ~ 85°C
Contact Type - - - -
Contact Finish - Mating - - - -
Contact Length - Post - - - -
Material Flammability Rating - - - -
Connector Type - - - -
Ingress Protection - - - -
Contact Shape - - - -
Features - - - Simultaneous Sampling
Package - Tape & Reel (TR) Tube Tape & Reel (TR)
Base Product Number - DAC34H84 MAX500 ADS62P42
Contact Finish - Post - - - -
Insulation Material - - - -
Number of Rows - - - -
Number of Positions - - - -
Fastening Type - - - -
Overall Contact Length - - - -
Pitch - Mating - - - -
Style - - - -
Mounting Type - Surface Mount Through Hole Surface Mount
Shrouding - - - -
Contact Length - Mating - - - -
Series - - - -
Current Rating (Amps) - - - -
Contact Finish Thickness - Mating - - - -
Contact Material - - - -
Contact Finish Thickness - Post - - - -

PEC30DGAN Datasheet PDF

Download PEC30DGAN pdf datasheets and Sullins Connector Solutions documentation for PEC30DGAN - Sullins Connector Solutions.

Datasheets
GxCxxDxxN Drawing.pdf
HTML Datasheet
.100" Headers Datasheet.pdf
Environmental Information
Sullins Connector Solutions REACH.pdf
