Specifications

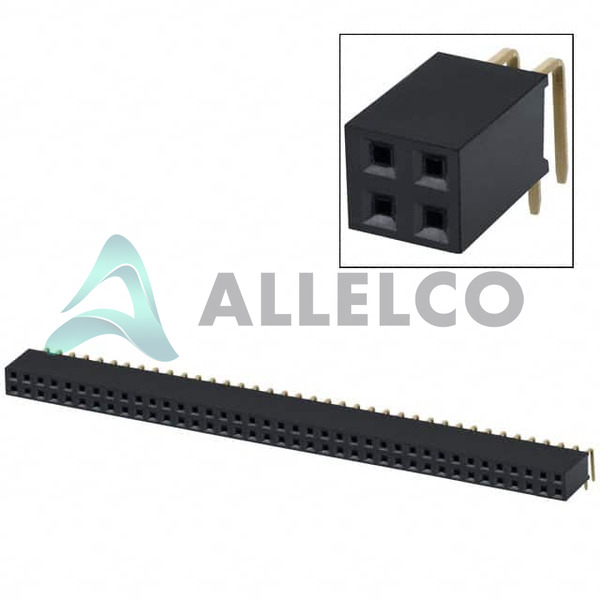

PPPC392LJBN Tech Specifications
Sullins Connector Solutions - PPPC392LJBN technical specifications, attributes, parameters and parts with similar specifications to Sullins Connector Solutions - PPPC392LJBN
| Product Attribute |
Attribute Value
| |
| Manufacturer |
Sullins Connector Solutions |
|
| Voltage Rating |
250V |
|
| Termination |
Solder |
|
| Style |
Board to Board |
|
| Series |
- |
|
| Row Spacing - Mating |
0.100" (2.54mm) |
|
| Pitch - Mating |
0.100" (2.54mm) |
|
| Package |
Bulk |
|
| Operating Temperature |
-40°C ~ 105°C |
|
| Number of Rows |
2 |
|
| Number of Positions Loaded |
All |
|
| Number of Positions |
78 |
|
| Mounting Type |
Through Hole, Right Angle |
|
| Material Flammability Rating |
UL94 V-0 |
|
| Mated Stacking Heights |
- |
|
| Insulation Material |
Polyester |
|
| Insulation Height |
0.200" (5.08mm) |
|
| Product Attribute |
Attribute Value
| |
| Insulation Color |
Black |
|
| Ingress Protection |
- |
|
| Features |
- |
|
| Fastening Type |
Push-Pull |
|
| Current Rating (Amps) |
3A |
|
| Contact Type |
Female Socket |
|
| Contact Shape |
Square |
|
| Contact Material |
Phosphor Bronze |
|
| Contact Length - Post |
0.124" (3.15mm) |
|
| Contact Finish Thickness - Post |
Flash |
|
| Contact Finish Thickness - Mating |
Flash |
|
| Contact Finish - Post |
Gold |
|
| Contact Finish - Mating |
Gold |
|
| Connector Type |
Header |
|
| Base Product Number |
PPPC392 |
|
| Applications |
- |
|
