Specifications

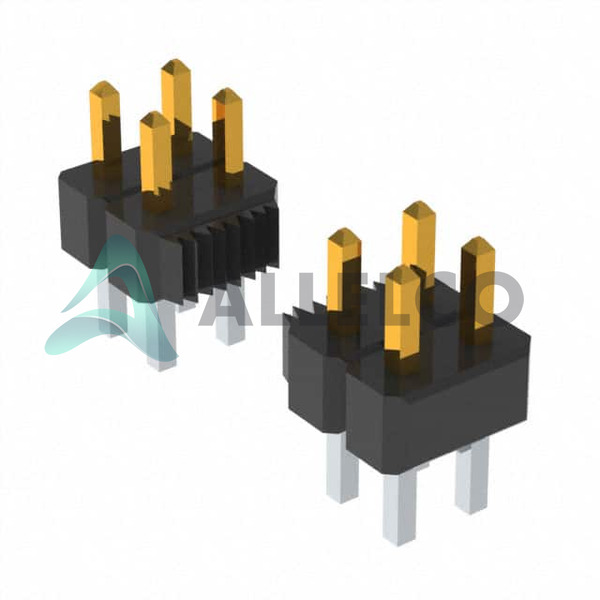

PZC28DZAN Tech Specifications
Sullins Connector Solutions - PZC28DZAN technical specifications, attributes, parameters and parts with similar specifications to Sullins Connector Solutions - PZC28DZAN
| Product Attribute |
Attribute Value
| |
| Manufacturer |
Sullins Connector Solutions |
|
| Voltage Rating |
- |
|
| Termination |
Solder |
|
| Style |
Board to Board or Cable |
|
| Shrouding |
Unshrouded |
|
| Series |
- |
|
| Row Spacing - Mating |
0.100" (2.54mm) |
|
| Pitch - Mating |
0.100" (2.54mm) |
|
| Package |
Bulk |
|
| Overall Contact Length |
0.340" (8.64mm) |
|
| Operating Temperature |
- |
|
| Number of Rows |
2 |
|
| Number of Positions Loaded |
All |
|
| Number of Positions |
56 |
|
| Mounting Type |
Through Hole |
|
| Material Flammability Rating |
UL94 V-0 |
|
| Mated Stacking Heights |
- |
|
| Insulation Material |
Thermoplastic, Polyester |
|
| Product Attribute |
Attribute Value
| |
| Insulation Height |
0.100" (2.54mm) |
|
| Insulation Color |
Black |
|
| Ingress Protection |
- |
|
| Features |
- |
|
| Fastening Type |
Push-Pull |
|
| Current Rating (Amps) |
3A |
|
| Contact Type |
Male Pin |
|
| Contact Shape |
Square |
|
| Contact Material |
Copper Alloy |
|
| Contact Length - Post |
0.120" (3.05mm) |
|
| Contact Length - Mating |
0.120" (3.05mm) |
|
| Contact Finish Thickness - Post |
100.0µin (2.54µm) |
|
| Contact Finish Thickness - Mating |
10.0µin (0.25µm) |
|
| Contact Finish - Post |
Tin |
|
| Contact Finish - Mating |
Gold |
|
| Connector Type |
Header |
|
| Base Product Number |
PZC28 |
|
| Applications |
- |
|
