Specifications

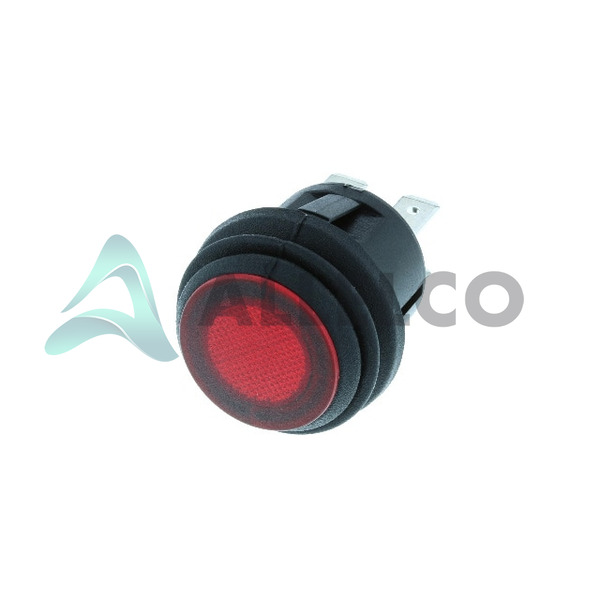

PB-2A-DC-2-RDL Tech Specifications
Switch Components - PB-2A-DC-2-RDL technical specifications, attributes, parameters and parts with similar specifications to Switch Components - PB-2A-DC-2-RDL
| Product Attribute |
Attribute Value
| |
| Manufacturer |
Switch Components |
|
| Voltage Rating - DC |
14 V |
|
| Type |
Standard, Illuminated |
|
| Termination Style |
Quick Connect - 0.187" (4.7mm) |
|
| Switch Function |
On-Off |
|
| Series |
PB |
|
| Panel Cutout Dimensions |
Circular - 20.20mm Dia |
|
| Package |
Bulk |
|
| Operating Temperature |
-25°C ~ 85°C |
|
| Mounting Type |
Panel Mount, Snap-In |
|
| Mechanical Life |
10,000 Cycles |
|
| Product Attribute |
Attribute Value
| |
| Ingress Protection |
IP65 - Dust Tight, Water Resistant |
|
| Illumination Voltage (Nominal) |
12 VDC |
|
| Illumination Type, Color |
LED, Red |
|
| Features |
- |
|
| Electrical Life |
6,000 Cycles |
|
| Current Rating (Amps) |
20A (DC) |
|
| Color - Actuator/Cap |
Red |
|
| Circuit |
DPST |
|
| Base Product Number |
PB-2A-D |
|
| Actuator Type |
Round, Button |
|
| Actuator Marking |
No Marking |
|
