Specifications

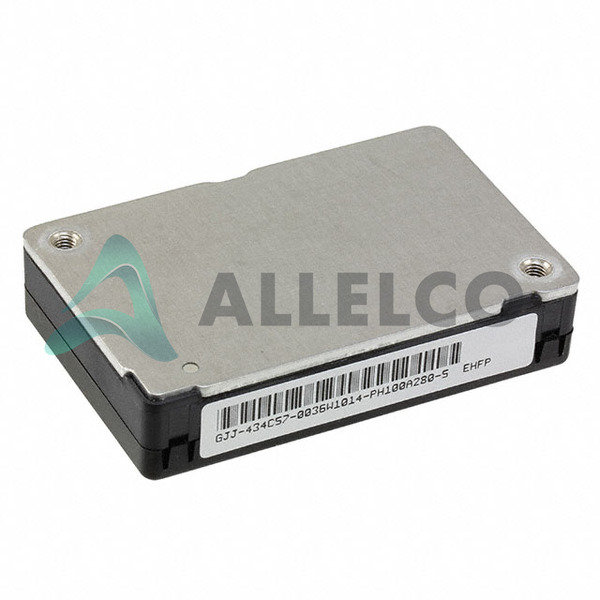

PH100A28048 Tech Specifications
TDK-Lambda Americas, Inc. - PH100A28048 technical specifications, attributes, parameters and parts with similar specifications to TDK-Lambda Americas, Inc. - PH100A28048
| Product Attribute |
Attribute Value
| |
| Manufacturer |
TDK-Lambda, Inc. |
|
| Voltage - Output 3 |
- |
|
| Voltage - Output 2 |
- |
|
| Voltage - Output 1 |
48V |
|
| Voltage - Isolation |
3kV |
|
| Voltage - Input (Min) |
200V |
|
| Voltage - Input (Max) |
425V |
|
| Type |
Isolated Module |
|
| Size / Dimension |
2.30" L x 1.46" W x 0.50" H (58.3mm x 37.2mm x 12.7mm) |
|
| Series |
PH-A280 |
|
| Power (Watts) |
100W |
|
| Packaging |
Bulk |
|
| Package / Case |
8-DIP Module, 1/4 Brick |
|
| Product Attribute |
Attribute Value
| |
| Other Names |
PH100A280-48 |
|
| Operating Temperature |
-40°C ~ 85°C |
|
| Number of Outputs |
1 |
|
| Mounting Type |
Through Hole |
|
| Moisture Sensitivity Level (MSL) |
1 (Unlimited) |
|
| Manufacturer Standard Lead Time |
14 Weeks |
|
| Lead Free Status / RoHS Status |
Lead free / RoHS Compliant |
|
| Features |
Remote On/Off, OCP, OVP |
|
| Efficiency |
90% |
|
| Detailed Description |
Isolated Module DC DC Converter 1 Output 48V 2.1A 200V - 425V Input |
|
| Current - Output (Max) |
2.1A |
|
| Applications |
ITE (Commercial) |
|
