HomeProductsIntegrated Circuits (ICs)PMIC - Gate DriversTMC6200-TA-T

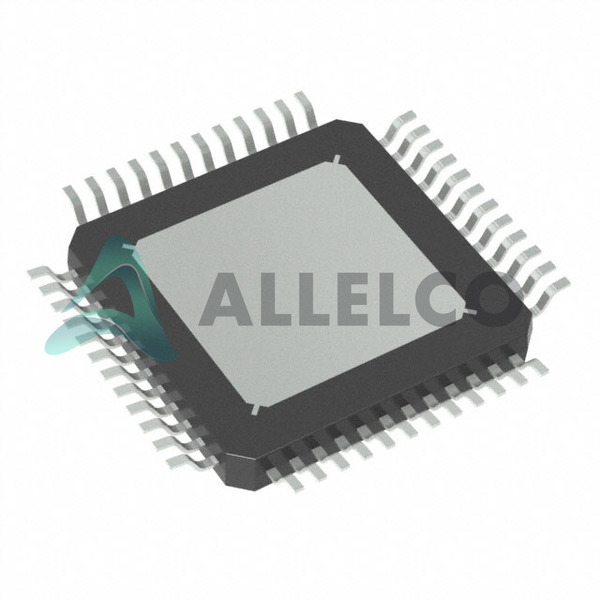

TMC6200-TA-T Image
TMC6200-TA-T Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

TMC6200-TA-T - Trinamic Motion Control GmbH

Manufacturer Part Number
TMC6200-TA-T
Manufacturer
TRINAMIC Motion Control GmbH
Allelco Part Number
32D-TMC6200-TA-T
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
IC GATE DRVR HALF-BRIDGE 48TQFP
Package
48-TQFP-EP (7x7)
Data sheet
1.TMC6200-TA-T.pdf ...
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 18698
  • Unit Price: $3.573
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $3.573 $3.57
10+ $3.121 $31.21
30+ $2.727 $81.81
100+ $2.496 $249.60
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

TMC6200-TA-T Tech Specifications
Trinamic Motion Control GmbH - TMC6200-TA-T technical specifications, attributes, parameters and parts with similar specifications to Trinamic Motion Control GmbH - TMC6200-TA-T

Product Attribute Attribute Value
Manufacturer TRINAMIC Motion Control GmbH
Voltage - Supply 10V ~ 60V
Supplier Device Package 48-TQFP-EP (7x7)
Series -
Rise / Fall Time (Typ) 20ns, 20ns
Package / Case 48-TQFP Exposed Pad
Package Tape & Reel (TR)
Operating Temperature -40°C ~ 125°C (TJ)
Number of Drivers 6
Product Attribute Attribute Value
Mounting Type Surface Mount
Logic Voltage - VIL, VIH -
Input Type CMOS
High Side Voltage - Max (Bootstrap) 85 V
Gate Type N-Channel MOSFET
Driven Configuration Half-Bridge
Current - Peak Output (Source, Sink) -
Channel Type 3-Phase
Base Product Number TMC6200

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001

Parts Introduction

Manufacturer Part Number

TMC6200-TA-T

Manufacturer

Analog Devices

Introduction

The TMC6200-TA-T is a high-performance three-phase gate driver from Analog Devices. It is designed to drive up to six N-channel MOSFETs in a half-bridge configuration for applications such as motor control, power conversion, and industrial automation.

Product Features and Performance

Operates from a supply voltage range of 10V to 60V

Supports peak output currents of 1.5A for both source and sink

Fast rise and fall times of 20ns (typical)

Wide operating temperature range of -40°C to 125°C

Configurable input logic levels (CMOS)

Integrated bootstrap diodes for high-side gate drive

Exposed pad for improved thermal dissipation

Product Advantages

Robust and reliable design for demanding industrial applications

Efficient power delivery with low switching losses

Precise control and fast response for improved motor performance

Flexible configuration options to suit a variety of application requirements

Key Reasons to Choose This Product

High-performance gate driver with advanced features

Proven reliability and durability for long-term industrial use

Seamless integration with a wide range of motor control systems

Comprehensive technical support and resources from Analog Devices

Quality and Safety Features

Designed and manufactured to strict quality standards

Thermal protection and overcurrent detection for safe operation

Compliance with relevant industry standards and regulations

Compatibility

The TMC6200-TA-T is compatible with a wide range of N-channel MOSFETs and can be used in various motor control and power conversion applications.

Application Areas

Brushless DC (BLDC) motor control

Three-phase AC motor drives

Power inverters and converters

Industrial automation and control systems

Product Lifecycle

The TMC6200-TA-T is an active product, and our website's sales team continues to support it. There are no known discontinued or end-of-life models at this time. If you require further information or assistance, please contact our website's sales team.

Parts with Similar Specifications

The three parts on the right have similar specifications to Trinamic Motion Control GmbH TMC6200-TA-T

Product Attribute TMC6200-TA-T TMC6200-TA TMC6200-TA TMC6300-EVAL-KIT
Part Number TMC6200-TA-T TMC6200-TA TMC6200-TA TMC6300-EVAL-KIT
Manufacturer Trinamic Motion Control GmbH Trinamic Motion Control GmbH Analog Devices Inc./Maxim Integrated Trinamic Motion Control GmbH
Number of Drivers 6 6 3 -
Gate Type N-Channel MOSFET N-Channel MOSFET N-Channel MOSFET -
Rise / Fall Time (Typ) 20ns, 20ns 20ns, 20ns - -
Base Product Number TMC6200 TMC6200 - TMC6300
Package Tape & Reel (TR) Tray Tray Bulk
Channel Type 3-Phase 3-Phase 3-Phase -
High Side Voltage - Max (Bootstrap) 85 V 85 V - -
Voltage - Supply 10V ~ 60V 10V ~ 60V 10V ~ 60V -
Logic Voltage - VIL, VIH - - - -
Package / Case 48-TQFP Exposed Pad 48-TQFP Exposed Pad 48-TQFP Exposed Pad -
Operating Temperature -40°C ~ 125°C (TJ) -40°C ~ 125°C (TJ) -40°C ~ 125°C (TJ) -
Input Type CMOS CMOS Non-Inverting -
Current - Peak Output (Source, Sink) - - - -
Supplier Device Package 48-TQFP-EP (7x7) 48-TQFP-EP (7x7) 48-TQFP-EP (7x7) -
Series - - - Landungsbrücke, Startrampe
Driven Configuration Half-Bridge Half-Bridge Half-Bridge -
Mounting Type Surface Mount Surface Mount Surface Mount -

TMC6200-TA-T Datasheet PDF

Download TMC6200-TA-T pdf datasheets and Trinamic Motion Control GmbH documentation for TMC6200-TA-T - Trinamic Motion Control GmbH.
