HomeProductsRF/IF and RFIDRF AntennasGSA.8841.A.105111

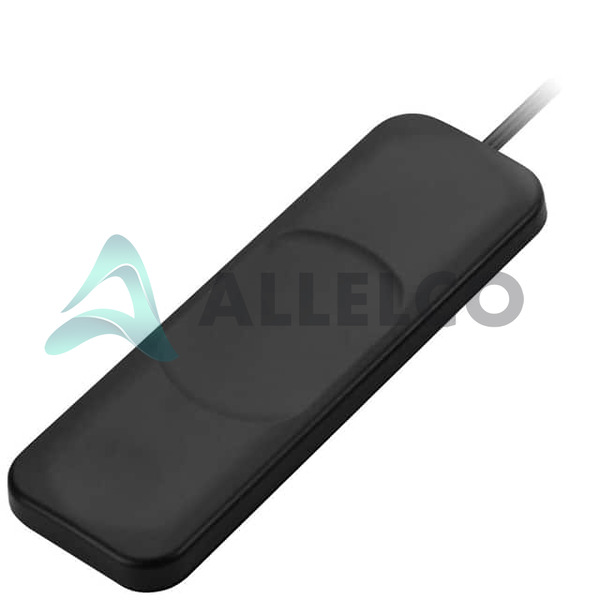

GSA.8841.A.105111 Image
GSA.8841.A.105111 Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

GSA.8841.A.105111 - Taoglas Limited

Manufacturer Part Number
GSA.8841.A.105111
Manufacturer
Taoglas
Allelco Part Number
98D-GSA.8841.A.105111
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
RF ANT 829MHZ/1.6GHZ FLAT BAR
Package
Bulk
Data sheet
1.GSA.8841.A.1051.pdf ...

PCN Packaging

2.73KHz.pdf

Environmental Information

Taoglas Limited RoHS.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 41484
  • Unit Price: $25.96
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $25.96 $25.96
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

GSA.8841.A.105111 Tech Specifications
Taoglas Limited - GSA.8841.A.105111 technical specifications, attributes, parameters and parts with similar specifications to Taoglas Limited - GSA.8841.A.105111

Product Attribute Attribute Value
Manufacturer Taoglas
VSWR -
Termination SMA Male
Series -
Return Loss -
RF Family/Standard Cellular, Navigation, WiFi
Power - Max 5 W
Package Bulk
Number of Bands 5
Mounting Type Adhesive
Product Attribute Attribute Value
Ingress Protection IP65
Height (Max) 0.457' (11.60mm)
Gain 1.56dBi, 1.38dBi, 3.79dBi, 4.87dBi, 5.35dBi
Frequency Range 698MHz ~ 960MHz, 1.565GHz ~ 1.612GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.7GHz, 4.8GHz ~ 6GHz
Frequency Group Wide Band
Frequency (Center/Band) 829MHz, 1.6GHz, 1.9GHz, 2.6GHz, 5.4GHz
Features -
Base Product Number GSA.8841
Applications CDMA, GPS, GSM, LTE, UMTS, WLAN
Antenna Type Flat Bar

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN 7A994
HTSUS 8529.10.9100

Parts with Similar Specifications

The three parts on the right have similar specifications to Taoglas Limited GSA.8841.A.105111

Product Attribute GSA.8845.A.105111 GSA.8842.A.105111 GSA.8859.A.105111 GSA.8825.A.051M11
Part Number GSA.8845.A.105111 GSA.8842.A.105111 GSA.8859.A.105111 GSA.8825.A.051M11
Manufacturer Taoglas Limited Taoglas Limited Taoglas Limited Taoglas Limited
Frequency (Center/Band) - - - -
Series - - - -
RF Family/Standard - - - -
Power - Max - - - -
Height (Max) - - - -
Antenna Type - - - -
Applications - - - -
Mounting Type - Surface Mount Through Hole Surface Mount
Frequency Group - - - -
VSWR - - - -
Features - - - Simultaneous Sampling
Base Product Number - DAC34H84 MAX500 ADS62P42
Ingress Protection - - - -
Package - Tape & Reel (TR) Tube Tape & Reel (TR)
Frequency Range - - - -
Termination - - - -
Number of Bands - - - -
Gain - - - -
Return Loss - - - -

GSA.8841.A.105111 Datasheet PDF

Download GSA.8841.A.105111 pdf datasheets and Taoglas Limited documentation for GSA.8841.A.105111 - Taoglas Limited.

PCN Packaging
2.73KHz.pdf
Environmental Information
Taoglas Limited RoHS.pdf
