HomeProductsRF/IF and RFIDRF AntennasMA170.A.BI.001

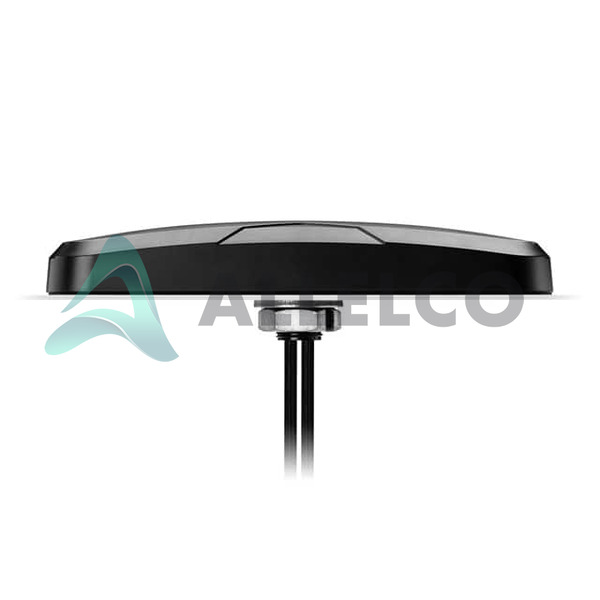

MA170.A.BI.001 Image
MA170.A.BI.001 Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

MA170.A.BI.001 - Taoglas Limited

Manufacturer Part Number
MA170.A.BI.001
Manufacturer
Taoglas
Allelco Part Number
98D-MA170.A.BI.001
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
MONSOON 3M LTE MIMO(1&2) SMA(M)S
Package
Tray
Data sheet
1.MA170.A.BI.001.pdf ...

PCN Packaging

Label 25/May/2018.pdf

Environmental Information

Taoglas Limited RoHS.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 41172
  • Unit Price: $148.624
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $148.624 $148.62
192+ $59.302 $11,385.98
496+ $57.321 $28,431.22
992+ $56.342 $55,891.26
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

MA170.A.BI.001 Tech Specifications
Taoglas Limited - MA170.A.BI.001 technical specifications, attributes, parameters and parts with similar specifications to Taoglas Limited - MA170.A.BI.001

Product Attribute Attribute Value
Manufacturer Taoglas
VSWR 5
Termination SMA Male
Series -
Return Loss -
RF Family/Standard Cellular
Package Tray
Number of Bands 8
Mounting Type Base Mount
Ingress Protection -
Product Attribute Attribute Value
Height (Max) 1.218" (30.93mm)
Gain 1.47dBi, 2.28dBi, 2.36dBi, 2.74dBi, 3.28dBi, 4.43dBi, 5.93dBi
Frequency Range 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz
Frequency Group Wide Band
Frequency (Center/Band) 750.5MHz, 859MHz, 920MHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.495GHz, 3.45GHz
Features -
Base Product Number MA170
Applications 2G, 3G, 4G, LTE
Antenna Type Dome

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8529.10.9100

Parts with Similar Specifications

The three parts on the right have similar specifications to Taoglas Limited MA170.A.BI.001

Product Attribute MA170.A.BI.001 MA173.A.LBI.001 MA172.A.LBC.001 MA16DP20C3
Part Number MA170.A.BI.001 MA173.A.LBI.001 MA172.A.LBC.001 MA16DP20C3
Manufacturer Taoglas Limited Taoglas Limited Taoglas Limited Omron Automation and Safety
Antenna Type Dome Dome Dome -
Series - Monsoon Monsoon MA-STI
Frequency Range 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz 698MHz ~ 2.69GHz 698MHz ~ 2.69GHz, 4.9GHz ~ 5.85GHz -
Features - LNA, Filter LNA, Filter -
Return Loss - -3dB, 10dB -3dB, 10dB -
Termination SMA Male SMA Male SMA Male -
Gain 1.47dBi, 2.28dBi, 2.36dBi, 2.74dBi, 3.28dBi, 4.43dBi, 5.93dBi -2.58dBi, -4.54dBi, -3.53dBi, 1dBic, -3.3dBi, -4.51dBi, -4.72dBi, -3.59dBi -3.37dBi, -3.59dBi, -3.59dBi, 1dBic, -2.99dBi, -3.81dBi, -4.63dBi, -3.71dBi -
Frequency Group Wide Band Wide Band Wide Band -
Height (Max) 1.218" (30.93mm) 1.220" (31.00mm) 1.220" (31.00mm) -
Base Product Number MA170 MA173 MA172 MA-16DP
RF Family/Standard Cellular Cellular, General ISM, Navigation Cellular, General ISM, Navigation -
Mounting Type Base Mount Panel Mount Panel Mount -
Applications 2G, 3G, 4G, LTE DCS, GLONASS, GPS, GSM, LTE, PCS, UMTS DCS, GLONASS, GPS, GSM, LTE, PCS, UMTS -
Number of Bands 8 9 9 -
Frequency (Center/Band) 750.5MHz, 859MHz, 920MHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.495GHz, 3.45GHz 761MHz, 859MHz, 920MHz, 1.57542GHz, 1.602GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.59GHz 761MHz, 859MHz, 920MHz, 1.57542GHz, 1.602GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.59GHz -
VSWR 5 - - -
Ingress Protection - IP67 IP67 IP67 - Dust Tight, Waterproof
Package Tray Bulk Tray Bulk
